High Quality High-Sensitivity 48 Cav Bottle Preform Pet Series Injection Molding Machine

Product Description

PET Series Plastic Injection Moilding Machine
Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
Main feature for PET machine: Enlarged motor & pump system; Special structure and steel for screw & barrel, L/D 24. Enlarged length of machine base. Enlarged ejector cylinder.

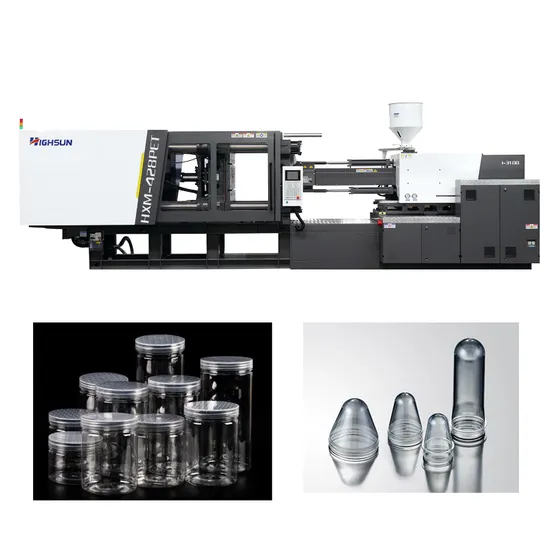

MODEL: HX(*)428PET
TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	mm	95
	SCREW L/D RATIO	L/D	24
	INJECTION CAPACITY (THEORETICAL)	cm3	2622
	INJECTION WEIGHT(PET)	g	3042
		oz	107.3
	INJECTION PRESSURE	MPa	130
	INJECTION RATE	g/s	777
	PLASTICIZING CAPACITY	g/s	150
	SCREW SPEED	rpm	160
CLAMPING UNIT	CLAMP FORCE	KN	4180
	OPEN STROKE	mm	710
	MAX. MOULD HEIGHT	mm	800
	MIN. MOULD HEIGHT	mm	280
	SPACE BETWEEN TIE-BARS (W×H)	mm	770*720
	EJECTOR FORCE	KN	193
	EJECTOR STROKE	mm	210
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	30+30
	HEATING POWER	KW	32.85
	MACHINE DIMENSION (L×W×H)	m	8.21*2.02*2.32
	MACHINE WEIGHT	t	14.2
	OIL TANK	L	687

Refernce
Machine: HXM 428-PET Machine: HXM 358-PET
1L bottle preform Bottle preform
Mould: 48 cavities Mould: 48 cavities
Weight: 30 g Weight: 12 g
Cycle time: 22s Cycle time: 17s

---
