Flexible Coupling with O Ring and Flat Gasket Ductile GGG50 Repair PVC PE Pipe Swivel Gibault Joint

Product Details

Product Description

Product Description
Product Description

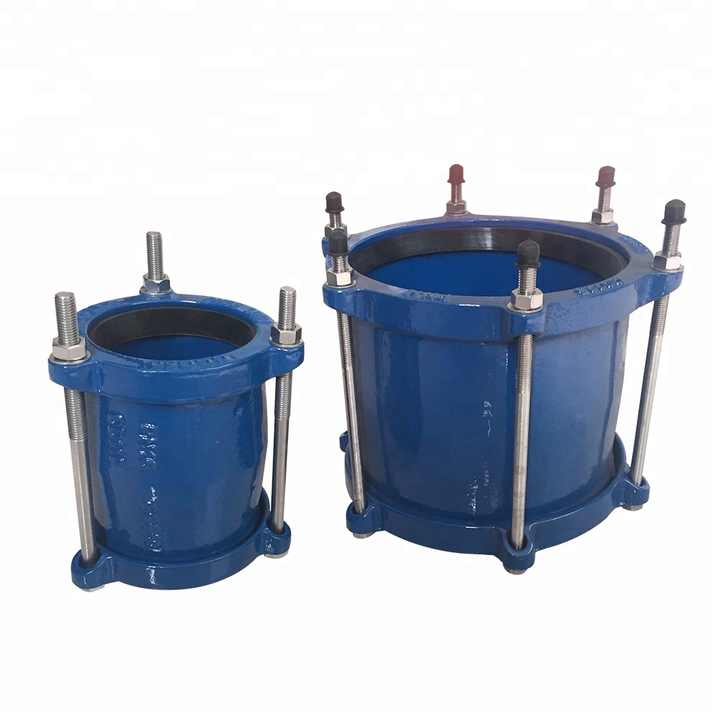

Gibault joints
This joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC and AC sized pipes.

Dimensions(mm)
Item No.	Size	Bolt		A	H
		L	QTY	mm	mm
1	63	160	2	125	147
2	75	160	2	125	147
3	90	160	3	125	165
4	110	180	3	145	185
5	125	180	3	145	200
6	140	180	4	145	215
7	160	220	4	185	236
8	180	220	4	185	255
9	200	220	4	185	276
10	225	230	6	185	285
11	250	230	6	185	340
12	280	230	6	185	345
13	315	230	6	185	352

Universal Coupling
Features:
1.Ductile Iron GGG50 material with FBE coated.
2.PN10,PN16 working pressure.
3.Equipped with galvanized steel bolts,nuts.
4.EPDM or NBR rubber seals
5.High Tolerance Mechanical Pipe Fittings.
6.Angular deflection +/- 6°
7.Other size and range are available on request.
Material Specification:

Parts Name	Material
Gland	Ductile Iron
Gasket	EPDM/NBR
Center Sleeve	Ductile Iron/Steel

Detailed Images

---
