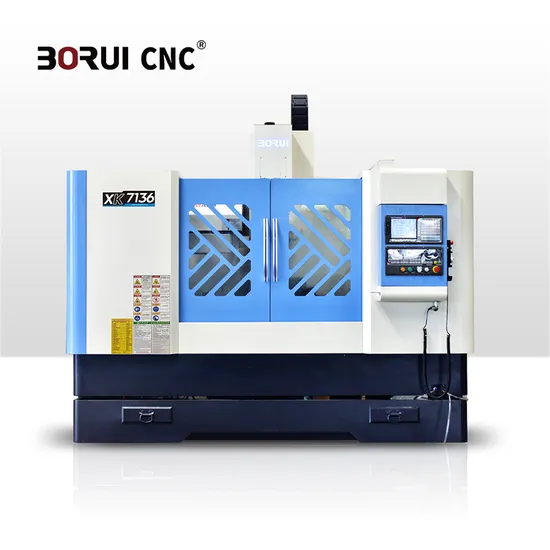

Xk7136 New Vertical Machine Center Small CNC Milling Machine for Metal

Product Description

XK7136 New Vertical Machine Center Small Cnc Milling Machine For Metal Product Description
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Product Parameters

CNC milling machine	XK7132	XK7136
Table size	800x320	1250x360
Max. table load	300kg	400kg
T slot qty-width*distance	3-14x110	3-14x80
spindle speed	60-8000 r p m	60-8000 r p m
spindle nose to table surface	125-520mm	120-580
Spindle center to Column surface	360	460
Spindle taper	BT30/BT40	BT40
Main motor power	3.7kw (servo)	3.7kw (servo)
X axis travel	500mm	900mm
Y axis travel	320mm	360mm
Z axis travel	400mm	460mm
X/Y/Z axis rapid feed	8/8/6m/min	5/5/4m/min
Positioning accuracy	±0.01mm	±0.01mm
Repeatabeility accuracy	±0.005mm	±0.005mm
Net Weight	2500kg	2650kg
Overall Dimension	1900x1800x2100	2220x1850x2250

Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis

Details Display

Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )

---
