US$14,650.00-29,860.00
|
1 Piece
(MOQ)
|
Basic Info.
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Tank Material
Q345r or Q370r
Loading Capacity
30t, 30ton, 30tons, 30mt
Tank Size
65m3, 65cbm, 65000liters, 65000L
Design Pressure
1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Thickness of End Plate
16mm
Fill Medium
Cooking Gas, Propane, LPG, Gas
Overall Size
11832X2728X3318mm
Transport Package
Naked with Wax
Specification
65000L, 65cbm, 6500liters, 65m3
Production Capacity
500 Unit/Month
Product Description
65 cubic meters 65000L 30tons 30mt lpg storage tanks for cylinder filling gas station building
Product Description
1. Storage medium of lpg storage tanks :LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg storage tanks : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg storage tanks : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of lpg storage tanks
| Parameter of 65000liters lpg storage tanks |
| ITEM | PARAMETER | ITEM | PARAMETER |
| Volume | 65cbm | Thickness of Shell | 14mm |
| Tank Material | Q345R | Thickness of End plate | 16mm |
| Overall Size | 11832*2728*3318mm | Tank Net Weight | 13590kg |
| Tank Diameter | 2700mm | Loading Capacity | 25935kg |
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 |
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm |
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk |
| Vapor Outlet | DN50 | Gas Outlet | DN50 |
| Life time | 15 years | | |
| Accessories |
| Model | Item | Qty | Junction surface |
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF |
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF |
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF |
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF |
| A42F-25-100 | Safety Valve DN100 | 1 | RF |
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC |

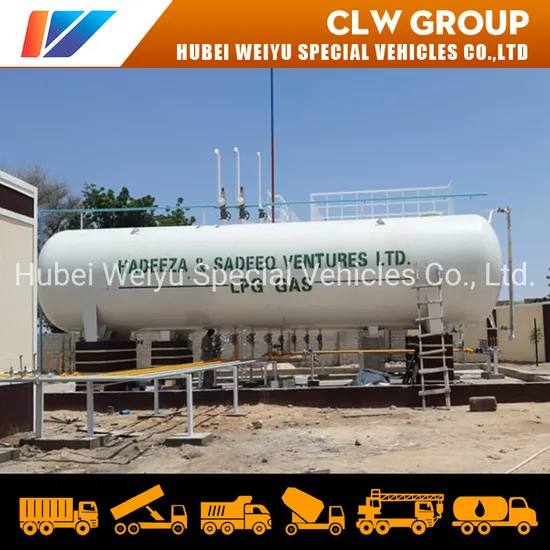

Reference pictures of 65cbm lpg storage tanks
We supply package solution for lpg station building as follows
Contact Shirley for more details and special discount price
