Melon Seeds Mesh Belt Drier for Foodstuff Industry

Product Description

Product Description

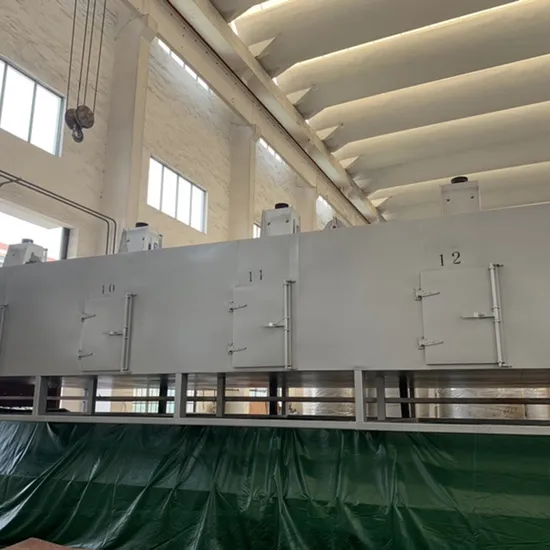

Melon seeds Mesh-Belt Drier FOR FOODSTUFF INDUSTRY
This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.
The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.
specDW-1.2-8DW-1.2-10DW-1.6-8DW-1.6-10DW-2-8DW-2-10 unit number4646 46 belt Width
m1.21.21.61.622 drying section Length
m810810810 Thickness of the material
mm10-80 Temperature 60-130 steam Pressure Mpa0.2-0.8 steam Consumption Kgsteam/KgH2O2.2-2.5 drying strength KgH2O/h6-20kg/m2.h total power of blower Kw3.34.46.68.81216 total power of equipment KW4.055.157.359.5513.117.1
Specialized machine for Chinese medicine
unitthree units series specialized machine for vegetablefive layers specialized machine for vegetable(Frame type)
modelDWP-2-10-3DWF-2-10-3DW5-3-12 effective belt widthm223 effective belt lengthm/unit101012 tandemquantity33 layers5 vegetable capacitykg/h6007202000 evaporate strengthkg/h400-510480-6401440-1800 consumption of steamKgsteam/KgH2O2.2-2.52.2-2.52.2-2.4 heat radiation aream2 90014402600 total power of the machinekw7052150 overall sizem33.2×2.58×2.833.2×2.27×2.8515.3×4.3×8.5 heat source typesteam, theermal conductivity oil, hot air furnace, electric Specialized machine for feed (frame type)
Specialized machine for feed (frame type) modelunitDWZ-3×12 effective belt widthm3 effective belt lengthm/unit12 using temperature 80-130 pressure of steamMpa0.4-0.8 drying timemin35-50 thickness of materialcm5-8 drying strengthkg/h6-20 consumption of steamKgsteam/KgH2O2-2.4 total power of the machinekw76 overall sizem15.1×4.3×3.4
Wang Wang China Holdings Limited Hefei Branch Zhuzhou Qianjing Pharmaceutical Co., Ltd.
Changsha Jiuzhitang Pharmaceutical Co., Ltd.
Qingdao Pluodun Eslgma Blo-Tech Co., Ltd.
Top Chef Food Technologies Co., Ltd.
Fushoutang Pharmaceutical Co., Ltd.
Bozhoushi Zhongxin Pharmaceutical Co., Ltd.
Wuhan Fuxing Biological Pharmacy Co., Ltd.
Jilin Yiren Feed Co., Ltd.
Export to Indonesia, Tailand, Ukraine and so on.
Company Profile
Changzhou Yibu Drying Equipment Co., Ltd is a leading manufacture of drying, mixing, granulating equipemnt in the main land of China, a specially- designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation, covers more than 50, 000sq. M, holds RMB 38 million of fixed assets and has more 180 sets of special processing equipment and powerful technical force, own the provincial famous trademark "YIBU". It can produce more 1, 500 stes of different. At present, there are 28 kinds and over 160 of specifications and varieties. The credit level is AAA for the passing days. ISO9001 & ISO1400 are approved.
The founder, Mr Zha Guocai devotes research, manufacture, production and business of drying equipment for over thirty years, holds the post of Deputy Director-General of China Drying Equipment Association for a long time.
The company pays much attention to science and technology renovation. First or later, it has cooperated with the institutes that are Shanghai, Wuhan, Chongqing and so on, and cooperated with Shenyang Chenmical Institute, Ministry of Chemical Industry, Qinghua University, Shanghai transportation University, Dalian Science and Technology University. Therefore the company can put 3-5 new varieties into the market every year. In 1998, through approval of state relevant departments, the company set up China Research Center of Drying and Granulating, that can research new process and develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We have many testing machine in our lab for to make trials for clients.

We've sold equipment to USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Philippines, Korea, Japan, Taiwan, Hongkong and so on totally nearly 50 countries and districts around the planet.

Certifications
Packaging & Shipping

---
