Fast Connector Exit Fiber Optic Splice Closure

Product Description

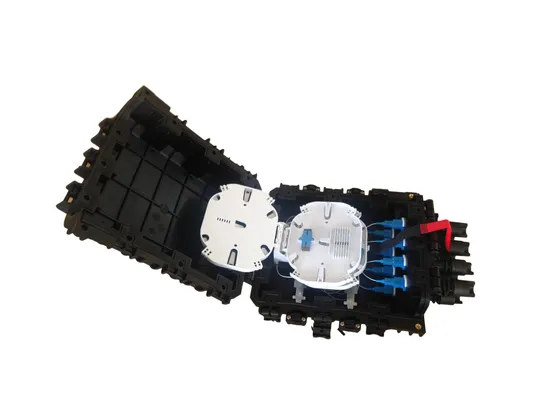

GP01-H31JF4(8)-36C In-line Type Optic Cable Splice Closure
GP01-H31JF4(8)-36C optic splice closure is quick installed and reliable sealed closure. With engineering plastic in scientific formula, injection-molding,
and excellent mechanical strength, it can prevent aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant,waterproof,anti-vibration
and anti impact box, the closure could protect the optic cable joints from tensile ,impact,bending,flattening, twisting, and axial compression.
All the sealing accessories qualified in the viscosity and white ants resistance test. Reliable sealing performance, convenient for repeated use.

Model	Trays	Tray capacity	Max Capacity	Dimension mm (biggest point)	Entry port & Available cable dia.	Raw material
GP01-H31JF4(8)-36C	3	12c	36 c	319*248*125	2 inlet & 2 outlet for φ8-φ12mm cable. 8 pcs SC adapter ports for 8 figure drop Cable 2*3 mm	Closure body: P.P +GF Tray: ABS
Sealing method			Full Mechanical sealing way, clip type lock		Application	Pole/ wall mounting
Bending Radius			> 40mm		Durability	25 years
Available Splitter			2pcs 1:4/2:4, or 1 pcs 1:8/2:8

Application: Widely used to connect or branch the outdoor optic cable fibers in aerial/pole/wall applications. Fully Mechanical sealing and re-open design,
available for split with fast connectors without open the closure.
Provide optional valve and earthling rod. Simple inner structured and easy to installation, is the best choice for the network construction.
Technical Parameter: Working temperature:-40ºC~+65ºC.
Atmospheric Pressure:62-106kPa.
Axial Tension:> 1000N/1min
Stretching Resistance>2000N/10cm² (1min).
Flatten Pressure: >2000N/100mm(1min)
Insulationn Resistance: >2 × 104MΩ
Voltage Strength:15KV(DC)/1min,no arcover or breakdown
Temperature Cycle:-40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature.
