20mm Jgs1 Big Size Powell Lens Jgs1 Quartz Uvfs Glass

Product Description

Powell lens is a Laser Line Generator Lenses, which optimally draws into a straight line with good optical density and better stability.After leading the laser beam to pass through. It can also remove the The central hotspot of the Gaussian beam.he top of Powell lens is a complex Two dimensional aspheric surface .As the laser passes through, it will make Massive spherical aberration, Redistribute the light path,Reduce the light in the central area,Add edge light,and form an even straight line. It is suitable for Various biomedical, automotive assembly, food processing and other machine vision application.When design, we chose refractive index n=1.5 optical glass for small angle powell lens, But big angle powel lens will be manufacture by high refractive index n=1.8 optical glass. H-K9L and H-ZF7LA,JGS1 are the common glass.Powell lens are avaiable with 2-110 degree, The standard diameter is 9mm, but other size can be customized. Rectangular shape powell lens can be designed and manufactured.

Specifications:

Material:	H-K9L JGS1 UV Fused Silica
Diameter	Standard 9mm+0.00/-0.05 or 3mm to 60mm customized
Fan angle	1-110degree
Beam diameter	0.5-5mm or bigger
Uniformity	>80%(High Precison)
Straightness of line	99.9%(High Precision)
Design wavelength	385-1064nm
Surface Quality	40-20
Coating	AR Coating on request
Rohs	Compliant

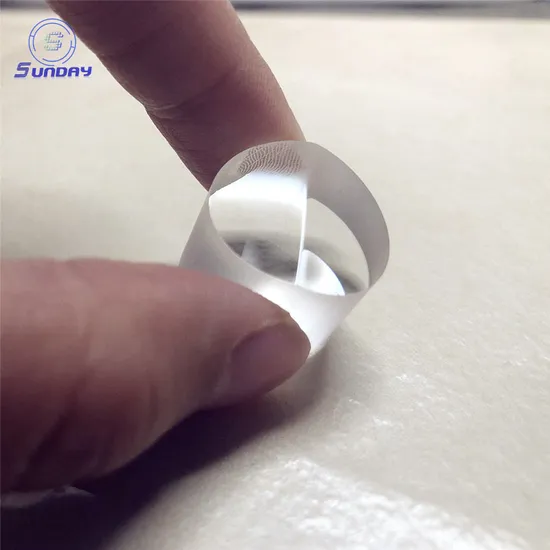

Lens Show:
Our Factory
Testing
Exhibition Show
Sunday Optics attended Laser World in Laser World in Munich,Frankfult Exhibition,SPIE every year.
Related Production Line
sunday optics also manufacture high precison Lens,prism, powell lens, collimator lens, glass filter, and mirror.
FAQ:
1. Are you manufacturure? can we see your factory?
Yes.
2. Do you have test report?
Yes, we offer full size test report, about size, focal length, flatness, coating curve, coating plate.
3.What is your production quantity everymonth?
It depands on the lens size and precison.
4.What is the Minimum quantity?
1pc
5.What is your delivery time?
samples: 10-20days
6.How should we do if the quality is not good?
Repair or return money.

---
