Factory Supply Directly CNC Double Axis Drilling Tapping Compound Machine

Product Description

Factory Supply Directly CNC Double Axis Drilling Tapping Compound Machine

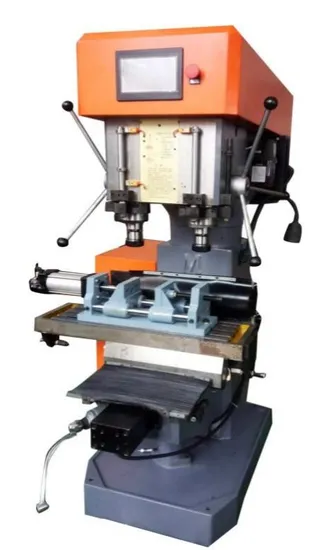

I.Equipment description and pictures1.The manual machine tool consists of a base, a column, a lifting table, a middle drag, a worktable, and a spindle unit.
2. PLC control program control, friendly human-machine interface dialogue, intuitive programming and easy operation, ordinary people can quickly learn.
3.Sliding table double-spindle manual feed unit, Korea imported pneumatic components transmission table. The worktable adopts pneumatic device and hydraulic buffer for positioning, moving and high positioning accuracy. Eliminates the problem of partial tooth failure of old-fashioned equipment.
4.The worktable is high-frequency treated, wear-resistant, high-temperature resistant, and equipped with a lubrication system.
5.It is used in the processing of valves, plumbing and sanitary ware, door control hardware, fire hydrants, auto parts, etc. It is easy to operate, beautiful in appearance and cost-effective. II.Technical Parameter

No.	Name/Specification		Unit	ZS4150X2	ZS4150X2A	ZS4150X2B	ZS4150X2C
1	Spindle sleeve diameter		MM	90
2	Number of cutting spindle axes		/	2
3	Driving method		/	Primary synchronous belt drive
4	Max drilling diameter		MM	50
5	Max tapping dia		MM	50
6	Spindle taper		#	MT40
7	Spindle spacing		MM	240
8	Distance from spindle end face to work table		MM	240-580
9	Workbench size		MM	800*230
10	Workbench stroke		MM	250
11	Y axis medium towing travel		MM	Manual 120		Pneumatic 150
12	Travel of spindle(drilling/tapping)		MM	140/140
13	Manual/Automatic tapping		/	Manual	Automatic tapping	Manual	Automatic tapping
14	Drilling spindle speed		Rpm	1013
15	Tapping spindle speed		Rpm	518
16	Drilling motor model no.		/	4kW/4P
17	Tapping motor model no.		/	4kW/4P
18	Total power		kW	8
19	Dimension(L x W x H)		MM	1420*920*1800
20	Weight		KG	1250	1270	1300	1350

III.Production workshop
IV.Package and Loading
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any time.

---
