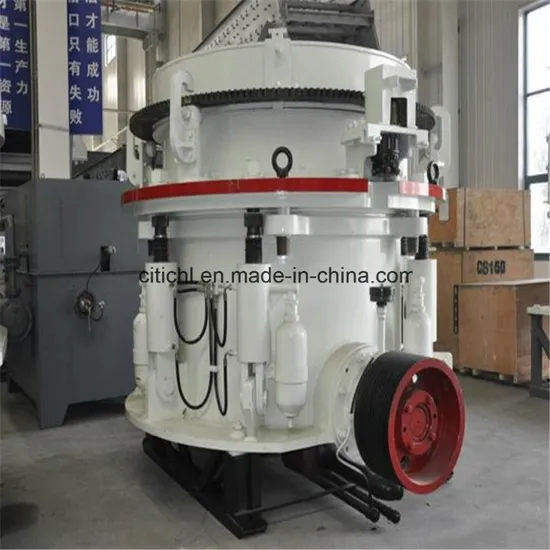

Professional Multi-Cylinde Hydraulic Stone Cone Crusher Price

Product Description

Professional Multi-cylinde Hydraulic Stone Cone Crusher Price
Cone crusher is suitable for crushing ore and rock which is above 300MPa hardness. It has advantages of reliable structure, high production efficiency, easy to modulate, high cost- effective. Its spring insurance system is the protecting gear for overload; this system can make foreign matter pass the crushing cavity, but not damage the machine, using dry and water two sealing type, it can segregate rock powder and lubricant, to ensure reliable operation. The crushing cavity type is decide by ore's purpose, normal type is used for medium crushing, medium type is used for fine crushing, short type is used for fine crushing.
Working principles of cone crusher:
The cone crusher for sale is mainly composed of frame, fixed cone assembly, movable cone assembly, spring mechanism, bowl pedestal part, transmission device and so on, and the auxiliary device includes electrical system, diluted oil lubrication station and hydraulic cleaning chamber system. When Cone crusher works, the motor drives the drive shaft through the pulley and V-belt .The drive shaft and a pair of bevel gear make the eccentric sleeve rotating and this makes the cone axis swing, so sometimes the crushing wall is near the rolling mortar wall, but sometimes they are far away from each other. Stones in the crushing cavity are extruded, impacted, and boned continuously, finally they are crushed.
Technical parameters:

Type		Diameter of cone	Max. feeding size	Width of discharging hole	Crushing capacity	Motor power (kw)	Swing frequency of main shaft	Weight (t)	Dimension (L× W× H)
PYB	600	600	65	12-25	40	30	356	5	2234×1370×1675
PYD			35	3-13	12-23			5.5	2234×1370×1675
PYB	900	900	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYZ			60	5-20	20-65			11.2	2692×1640×2350
PYD			50	3-13	15-50			11.3	2692×1640×2350
PYB	1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ			100	8-25	42-135			25	2790×1878×2844
PYD			50	3-15	18-105			25.3	2790×1878×2844
PYB	1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ			185	10-30	115-320			50.3	3910×2894×3809
PYD			85	5-13	75-230			50.2	3910×2894×3809
PYB	2200	2200	300	30-60	59-1000	280-260	220	80	4622×3302×4470
PYZ			230	10-30	200-580			80	4622×3302×4470
PYD			100	5-15	120-340			81.4	4622×3302×4470

Customers Visit:
In addition to, We also supply all kinds of crushing equipments, vibrating feeder, vibrating screen, rod mil, stone washer, belt conveyor, screw classifier, flotation machine, magnetic ore separator, shaving table, spiral chute, rotary kiln, rotary dryer, mine hoist , ect. If you have any interest in our products, pls kindly contact us by the upper information with no hesitation.

---
