Howell Szh-100 Double-Cone Mixer-Mixing Machine for Powder/Liquid/Multi-Materials Mixing and Drying

Product Description

Product DescriptionIn a fully sealed cylinder, the material flow speed and direction are different due to the difference in particle size and specific gravity. At the same time, the mixing shaft and the barrel are forced to rotate rapidly in the opposite direction of rotation, and the paddles on the shaft are used to forcibly roll the material, which greatly improves the mixing efficiency and uniformity.It is mainly used for the clean mixing of materials in the pharmaceutical, chemical, food, electronics, hardware, and other industries.It is suitable for the mixing of materials with multiple materials and viscous materials, which need to add liquid or trace elements in the mixing.The equipment has a high degree of automation, simple operation, continuous production, advanced structure, excellent mixing effect, and convenient installation and debugging.Use case presentationSZH series double cone mixer is widely used in medicine, chemical, food, electronics, hardware, beauty products and other industries of material mixing and drying.
It is suitable for the mixing of many materials and viscous materials, and it is also suitable for the mixing and drying of materials that need to add liquid or trace elements.

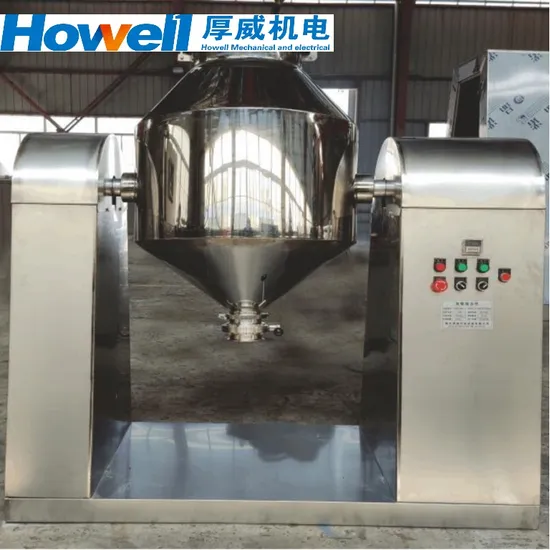

Detailed Photos
Product Parameters

Model		SZH-100	SZH-200	SZH-500	SZH-1000	SZH-1500	SZH-2000
Overall size (mm)		1365*700*1380	1450*800*1550	2070*1100*1860	2400*1200*2250	2870*1400*2560	3100*1600*3080
Cylinder volume (L)		100	200	500	1000	1500	2000
Loading capacity (L)		50	100	250	500	750	1000
Cylinder speed		8 r/min
Rotation speed		22 r/min
Rotary height (mm)		0.75	1.1	1.5	2.2	3	4
Motor power (kw)		1.45	1.62	1.9	2.4	2.65	3.15
Weight (Kg)		240	420	680	1100	1600	2000

Company Profile
Nanjing Howell Electromechanical Equipment Co., Ltd. was established in 1999, with its predecessor being Nanjing Ma Du Electric Heating Equipment Factory. After more than two decades, the company has gathered a team of professional talents in the field of electromechanical research and design. In 2001, the company passed the ISO9000 quality system certification, and has provided various high-quality products to users at home and abroad for many years.
Our company provides standardized and customized drying equipment, mixing equipment, and refrigeration and freezing equipment for customers in different industries.
After years of industry experience, our company has high-quality and innovative design and production capabilities, providing users with powerful technical support to make profits.
