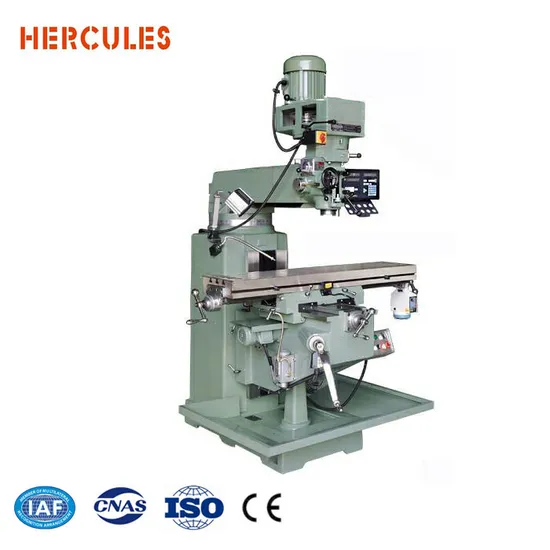

M5V X6330 Vertical Turret Type Milling Machine for Metal, Taiwan Spindle, CNC Machine, Cutting Machine, Lathe

Product Description

Advantage!!
1. High-frequency heat treatment for working table : hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.

3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.

5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .

! pecification of machine :

Model	M5V
	Precision High Accuracy Series
Table size(L*W)(mm)	1370x305
Max.load of table (kg)	350
X axis(mm)	1000 900 with power feed
Y axis(mm)	400
Z axis (mm)	360
Work table T slot (No.-size*pitch) (mm)	3-15.88x75
Distance between spindle and table(mm)	100-480
Ram travel (mm)	660
Travel of spindle quill (mm)	127
Auto crossward feed(mm/rev)	0.04/0.08/0.15
Spindle speed(rpm)	70-3600rpm 10steps
Spindle hole taper	NT40
Main Motor	5HP
Tilt angle for milling head	left and right±45º
Guiding tracks(X.Y.Z)	△
Dimension(L*W*H)(mm)	1850x1650x2300
Milling head	Square head with side brake
Weight (kg)	1450
Hercules Machinery Equipment Ltd.

---
