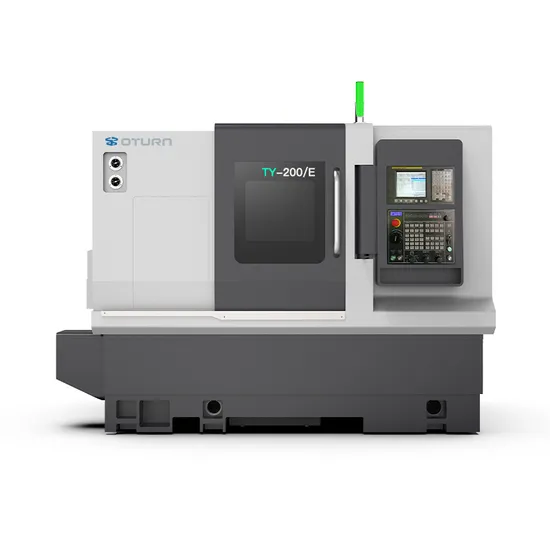

Oturncnc Ety200 One-Piece Casting Linear Guide Way Slant Bed CNC Lathe with High Precision

Product Description

Product Description
30° slant type bed, high stability integrated bed base. Direct-drive electric spindle can effectively eliminate the vibration of the spindle. The rear-mounted rotor is used for faster installation and maintenance. The spindle motor is equipped with a cooling system to ensure that the spindle continues to work at a constant temperature. This machine can not only complete finishing, but also rough and heavy cutting for users, especially suitable for mass production of products with complex shapes and high finish. Standard configuration servo turret. Programmable hydraulic tailstock, high rigid overall structure and good stability. The zeeding system is directly driven by the servo motor. The machine is equipped with roller linear guides, and the maximum fast moving speed can reach: 24m/min. The design of hydraulic and lubricating system is simple and reliable. Adopt centralized quantitative automatic lubrication. Adopt Taiwan rotary chuck oil cylinder, equipped with automatic chip removal device. The above functional components can be controlled by programming, and various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

Name	Unit	TY200E
Max. turning diameter over bed	mm	Φ610
Max. processing diameter	mm	Φ490
Max. processing diameter over tool holder	mm	Φ230
Max.processing length	mm	470
Distance Between Centers	mm	550
Spindle nose	type	A2-6
Spindle hole diame	mm	Ф66
Bar diameter	mm	Ф52
Maximum speed of spindle	rpm	4300
Spindle motor power	kw	18/22
Hydraulic Cylinder/Chuck	/	8"
X/Z motor power	kw	1.8
X/Z travel	mm	260/520
X/Z axis moving fast	mm/min	24
X/Z linear guide specification	/	35 roller
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Tool position		12T
Outer diameter tool holder specifications	mm	25X25
Inner diameter tool holder specification	mm	Ф40
Adjacent tool change time	sec	0.15
Programmable hydraulic tailstock	/	Programmable
The biggest stroke of the tail	mm	360
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	100
Tailstock max travel	mm	360
Sleeve taper	/	MT#5
Machine size(length*width*height)	mm	2500x2100x2000
Machine weight	kg	4000
Cutting fluid tank volume	L	150
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
