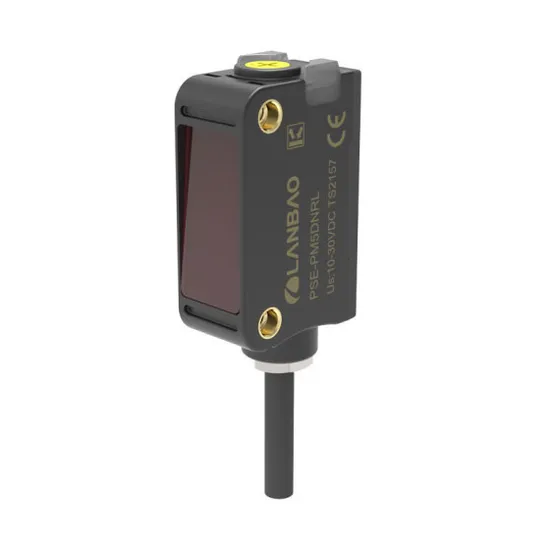

New Tech PSE-Pm Series 10m Polarized Reflection Laser Photoelectric Optical Proximity Sensor NPN PNP No Nc 12V 24V with CE UL

Product Description

PSE-PM series IP67 NPN PNP laser photoelectric sensor with CE
Polarized reflection type,detection distance: 5m NPN/PNP NO+NC output. Laser spot, high positioning accuracy.

NPN	NO+NC	PSE-PM10DNRL	PSE-PM10DNRL-E3
PNP	NO+NC	PSE-PM10DPRL	PSE-PM10DPRL-E3

Detection method	Polarized reflection
Rated distance	10m
Output type	NPN NO+NC Or PNP NO+NC
Distance adjustment	Knob adjustment
Light spot size	20mm@10m(Main Light spot)
Output state	Black line NO, white line NC
Supply voltage	10...30 VDC, Ripple<10%Vp-p
Consumption current	≤20mA
Load current	≤100mA
Voltage drop	≤1.5V
Light source	Red laser(650nm) Class1
Response time	T-on: ≤0.5ms; T-off: ≤0.5ms
Response frequency	≤1000Hz
Dead zone	<20cm
Smallest detector	≥φ3mm@0~2m, ≥φ6mm@2~10m
Circuit protection	Short circuit protection, overload protection,
	reverse polarity protection, zener protection
Indicator	Green light: power indicator,Yellow light: output, overload or short circuit(flicker)
Anti ambient light	Anti-sunlight interference ≤10,000lux;Incandescent light interference ≤3,000lux
Operating temperature	-10ºC ...50ºC(no icing, no condensation)
Storage temperature	-40ºC …70ºC
Humidity range	35%~85%(no icing, no condensation)
Protection degree	IP67
Certification	CE
Production standard	EN60947-5-2:2012,IEC60947-5-2:2012
Material	Housing: PC+ABS; Optical elements: Plastic PMMA
Weight	10g/50g
Connection	M8 4-pin connector/2m PVC cable

Dimension
Wiring diagram
Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,ROHS certificates.
We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3million products per year.
Factory process
Packing
Packaging is designed according to specific products for better protection.
International Exhibitions
We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US),
SPS(Germany),SPS (Guangzhou) and other industrial shows (textile, robot, elevator, logistic etc.) .As a
professional sensor manufacturer with core competitiveness and complete value chain, our products sell
well in more than 100 countries in the world, allowing more customers to appreciate the charm of "passing the
world, sensing the future".
Our partners
Specializing in precision,Lanbao always adheres to the business philosophy of"Quality First,
Reasonable Price, Prompt Delivery, and Attentive Service", maximize the needs and continuously
create long-term value and potential growth forcustomers.With comprehensive and efficient services,
Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US,
Canada, Germany Thailand etc.
About Us
Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers Association
Governing Units,established in 1998 in Shanghai, a leading domestic industrial automation product
supplier,specializing in the research,development, production, sale and service of industrial sensors,
sensor measurement and control systems.
Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,
capacitivesensor,light curtain,laser distance measuring sensors. Our products are widely used in
warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery,
rail transportation,chemical, robot industry.
Our advantage
1 day shipping guarantee for stock products
23 years ODM and OEM experience for world top sensor brands
100+ regions and countries
150+ patents and copyrights
500+ employees (110 engineers in R&D center)
100,000 m² factory
5000+ specifications
5,000,000 production capacity per year
Our customers
Specializing in precision, Lanbao always adheres to the business philosophy of "Quality First, Reasonable Price, Prompt Delivery, and Attentive Service", maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao's footprint has now spread to more than 100 countries and regions around the world ...
FAQ
Q : What is the MOQ?A : 1pcs for our own available designsQ : Can I customize a special sensor?A : SureQ : Can I get a lower price if I order large quantities?A : Yes, Cheaper prices with bigger size ordersQ : Can I get a sample?A : Of course, but you need to pay the minimum sample feeQ : When will you ship my order?A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.Q : How about the quality guarantee period ?A : Our warranty period is one year since from shipping date.Q : Can I add or delete items from my order if I change mind?A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.Q : How can you guarantee the production quality?A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brand

---
