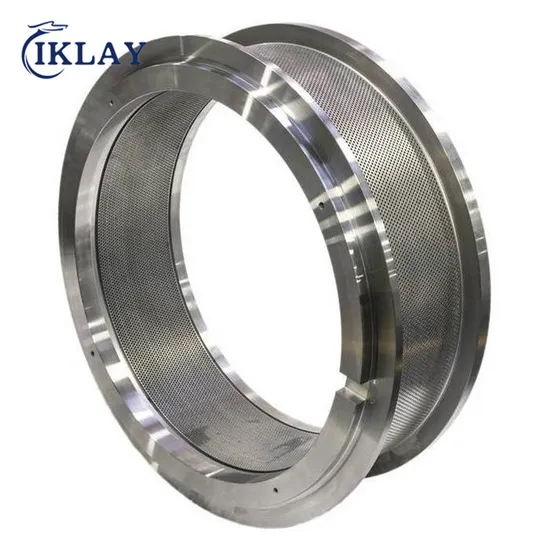

Buh Ler Ring Die Mold

Product Description

Our Liyang Iklay Machinery Co., Ltd. is a professional manufacturer for ring dies/ flat dies, pellet mill matrixes, rollers, roller assemblies, spare parts for pellet mill and so on. We can customize various models PELLET MILL RING DIES/ FLAT DIES& ROLLERS for pellet machine, such as MZLH, SZLH(Zhengchang), La Meccanica, SZLJ, HKJ, CPM, OGM, IDAH, SALMATEC, Amandus Kahl, MUZL/FAMSUN, Van Arson, PTN, Andritz PM, Shenda, Yemmak, CPP, Awila, Yulong XGJ and so on. Below are some models.( Including but not limited to following)

Pellet Mill Brand	Model
CPM	3016-4, 3016-5, 3020-6, 3020SW, 3022-6, 3022SW	7722-4, 7722-6, 7722-7, 7726-7, 7726SW	7730-6, 7730-7, 7730-8, 7730SW, 7930-4, 7930-6, 7930-8	7932-5, 7932-9, 7932-11, 7932-12, 7936-12, 7936-14	9036-9, 9042-12, 9046-12, 9046-14
Buh ler	Buh ler 304.58, Buh ler 304.78, Buh ler 420.108 (DMFJ) (DPCB), Buh ler 420.138 (DFPB) (DFPC)	Buh ler 520.138 (DPBA) (DPUC) , Buh ler 520.178 (DPBS)	SZLH400, SZLH420, SZLH520, AHHB530, AHHC520, AHHD660, AHPE900	Buh ler 660.138 (DPAB), Buh ler 660.178 (DPAA), Buh ler 660.228 (DPAS), Buh ler 660.265 (DPHD)	Buh ler 900.178 (DPGC), Buh ler 900.228 (DPGB), Buh ler 900.300 (DPHE)
Amandus Kahl	Kahl 14-175, Kahl 24-390	Kahl 33-390, Kahl 33-500, Kahl 38-600	Kahl 35-780, Kahl 38-780, Kahl 37-850	Kahl 39-1000, Kahl 40-1000	Kahl 45-1250, Kahl 60-1250, Kahl 60-1500
Zhengchang	SZLH250, SZLH300, SZLH320, SZLH350	SZLH400, SZLH420, SZLH508, SZLH528, SZLH535	SZLH558, SZLH858, SZLH660X	SZLH400D, SZLH420D, SZLH678D, SZLH768D	SZLH420b, SZLH428, SZLH1068, SZLH508E, SZLH1208
Famsun (Muyang)	MUZL350, MUZL420, MUZL420TW, MUZL610, MUZL610TW	MUZL1210, MUZL1610, MUZL2010, MUZL600, MUZL1200, MUZL1200A	K15 (SZLH535×190) , K20 (SZLH575×205), K25 (SZLH575×210) , K30 (SZLH635×220)	K35 (SZLH685×245), K40 (SZLH785×270), K60 (SZLH985×340), K70 (SZLH1070×370)	MUZL420M, MUZL610M, MUZL1210M, MUZL1610M
Yulong	XGJ560, XGJ850,	HKJ250, HKJ320, HKJ350	HKJ400, HKJ420, HKJ508
PTN	PTN580, PTN580-C	PTN HB 150, PTN 650	PTN Progress 580-2, PTN Progress 850.210, PTN Progress 900
Yemmak	Yemmak 420.106 Yemmak 420.108 Yemmak 420.138	Yemmak 520.138 Yemmak 520.175	Yemmak 660.178 Yemmak 660.228	Yemmak 900.228
La Meccanica	Lamec 200.35, Lamec 304 LG, Lamec 304.58, Lamec 304.78	Lamec 420.108, Lamec 420.138, Lamec 520.138, Lamec 520.138, Lamec 520.170	Lamec 630.150, Lamec 630.200, Lamec 630.240,	Lamec 800.150 C LG, Lamec 800.185 C, Lamec 800.220, Lamec 800.220 C, Lamec 800.250 C	Lamec 935, Lamec 935 C
Munch	RMP 350.100, RMP 520.1380, RMP 520.178	RMP 660.138, RMP 660.178, RMP 660.228	RMP 680.230, RMP 700.230, RMP 800.265
OGM	OGM-1.5, OGM-0.8, OGM-6

PRODUCT DETAILS Our ring dies/flat dies are suitable for:
1. Biomass pellet machine: wood pellet machine/ pellet mill, sawdust pellet machine, grass pellet machine, straw pellet machine, crop straw pellet machine, alfalfa pellet machine, coffee ground powder pellet mill and etc.
2. Livestock and poultry/aqua feed pellet machine: pig/cattle/sheep/chicken/duck/fish/shrimp......
3. Cat litter granulator/ pellet mill
4. Compound fertilizer

Material	Hardness	Diameter	Outer diameter
X46Cr13/4Cr13(stainless steel);20MnCr5/20CrMnTi(Alloy Steel)	HRC54-60	1.0mm-28mm	<1800mm

Following are our factory's processing technology and advantages. If you're interested, please do not hesitate to contact us.
Please tell us: model of pellet mill, hole diameter, compression ratio, material. We can quote you for checking.
1. Materials Forging/ Ring Rolling Process
---We choose China TOP1 forging factory's raw materials, usage life can be enhanced about 15%. Less impurities and high purity.
2. Rough Lathing Process (Before drilling) / Fine Lathing Process (After finished)
--- We use automatic CNC lathing machine to lathe ring dies/ flat dies.
3. Drilling Holes Process
--- All pellet mill dies are drilled by automatic CNC gun drilling machines to ensure inner holes mirror polishment, good smooth, high polished and good forming.
4. Countersinking, Drilling Screws& Keyway Process
--- All ring dies are countersinked by automatic CNC countersinking machines to ensure its smooth and uniform.
5. Heat Treatment Process --- Choosing vacuum furnace processing technology to ensure long service life; Stainless steel/ SS ring die can reach
HRC 54-58, Alloy steel/ AS ring die can reach HRC57-60. More wear-resistant and corrosion-resistant.
6. Quality Inspection For Each Process
--- We arrange the quality inspector to check the quailty for each process, strictly control the quality to guarantee final pellet dies are good.
7. Packing Process
--- After quality inspection is no problem, we will arrange the packing with wood boxes to make sure cargoes are in good condition during transportation.
8. More Photos for Our Pellet Dies/ Ring Dies/ Rollers which produced before
We can customize any model as long as you tell us your pellet machine model, hole diameter, compression ratio, materials and size.

---
