Product Details
Product Description
Product Description

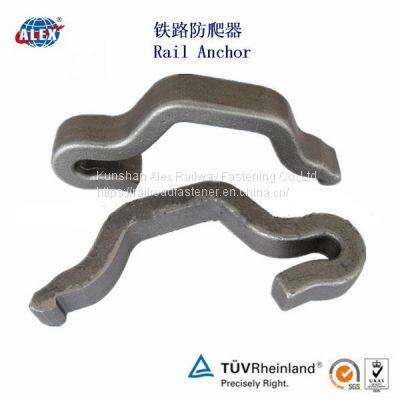

A rail anchor is used to clamp onto the base of rail snug against the crosstie both sides. It is produced in one-piece from spring steel, aiming to eliminate the track sliding or expanding or contracting.
Rail anchors which made in one-piece construction from spring steel are designed to fasten the rail tight on the base of the rail to prevent the rail from longitudinal movements.
Rail anchors are produced in accordance with exacting quality standards, approved by Kunshan Alex Quality Assurance Guarantee as well, with features as below:
· With consistent style and high quality for right rail fit
· ISO9001 certified rail anchors with higher longitudinal keeping power.
· Fast, simple and safe usage
· Available in drive-on or spring design.
Available for solutions of various different rail types and conditions
We produce different types of rail anchors to compromise different rail sections including 85LB, 90LB, 115RE, 132REm UIC54, UIC60, 50kg, etc.
Type
Used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail, or other types upon customers’ drawings.
|
Material| 60Si2MnA | 45# | QT500-7 |
Chemical composition(%)
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03
|
C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
| C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
Surface| plain (oiled),color painting, zinc painted or HDG |
Standard| AS1085.10-20002 , DIN, ISO-9001 |
Workshop of rail anchor
Quality control of Rail anchor/anticreeper:
Ways of packing for rail anticreeper
>>
