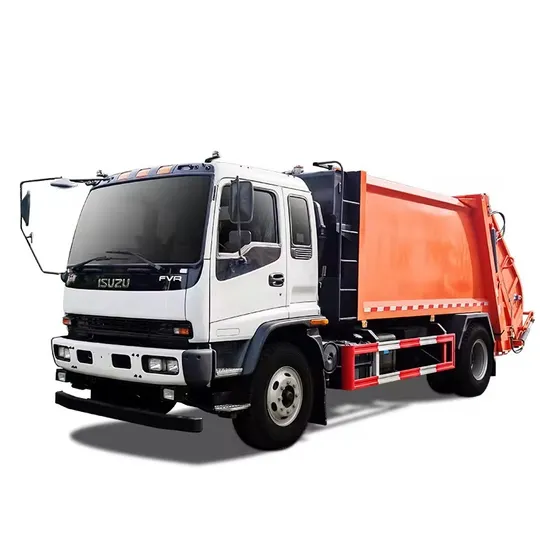

12m3 I Suzu Garbage Compactor Truck/Compression Garbage Truck Rear Load Garbage Truck for Sale

Product Description

Product Description
Overview
We are professional manufacturer of special trucks,supply different kinds of trucks,can be customized as customer requirements.
(1). Capacity: 3-20m3 garbage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage trucks
(4). Truck chassis: option japan and china brand

Garbage truck is also called compact garbage truck,compactor garbage truck,compression garbage truck,garbage compactor,etc
Customize garbage truck,
Detailed Photos
Product Parameters

Vehicle Parameter: Customized Production New I SUZU Dongfeng HOWO Forland JAC JMC brand rear loading garbage compactor truck factory price for sale
Product Name	Compactor Garbage Truck
Model	CLW5081ZYSB6
Chassis No.	QL1090
Driving Type	4*2
Gross Weight	7300kg
Related Loading Mass	4000kg
Curb Weight	4000kg
Dimension	6400*2150*2650mm
Wheelbase	3360(mm)
Front Axle Loading Capacity	3000kg
Rear Axle Loading Capacity	4500kg
Approach angle	20°
Departure angle	13°
Front Suspension	1130mm
Rear Suspension	2140mm
Tire	7.00R16,6+1 PCS
Max Speed	105 (Km/h)
Engine parameters:
Model	4KH1CN5LS
Horse Power	98hp
Displacement	2900cc
Emission Standard	Euro 5
Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling)
Gear Box
Gear Box	5 forward and 1 reverse
Superstructure Parameter:
Tank Volume	6CBM
Tank Shape	Arc-shape
Tank Material thickness	Bottom:4mm Side:4mm
Tank Material	T420(Special Steel)
Compression Ratio	≥2.5
The effective volume of the bucket	≥0.8m³
Loading cycle time	≤40 s
unload garbage time	≤45s
control method	Automatic,Manual
Maximum pressure of hydraulic system	20MPa
Control System	Siemens PLC
Engine power control	Fully automatic control
Tumbler mechanism	240L Garbage bin(Others Optional)

Packaging & Shipping
Our Advantages
The appearance of the box is a circular arc flow linear shape, and the overall folding of the bottom plate is not welded, eliminating the risk of leakage. simple Clean and beautiful, with strong deformation resistance, good structural reliability, and effectively increasing actual volume, surpassing similar products,
The material is made of high-strength manganese steel plate, which is not easily deformed, wear-resistant, and has strong corrosion resistance.
The electrical system equipped with the entire vehicle can achieve fully automatic control of engine output, ensuring operation or other working conditions,Choose acceleration or idle mode to reduce power loss and failure rate, reduce fuel consumption, and make it more stable and reliableEnergy saving.The intelligent control system adopts an imported CAN bus design and a modular structure. By proximity switch and oil,Combining the two methods of compression and response, achieving an efficient, stable, and easy to maintain compression solution with manual, automatic
Three semi-automatic control modes, which can be operated inside the cab, at the front of the box, and at the rear of the box, and equipped with remote control
The controller allows for convenient and efficient operation in various working environments.
Adopting the latest external oil cylinder structure and bidirectional compression technology, and using first-class domestic and foreign brand accessories,
The compression ratio exceeds 1:2.5, with a single cycle of ≤ 20 seconds, achieving a multiple improvement in garbage collection efficiency.Maximum consideration for customer usage environment, user-friendly design with many highlights, including night lighting and dual pollution,Water tank, with drainage pipe, remote control, complete operation and maintenance manual and video.Dedicated personnel test drive, simulate various complex working environments, and conduct physical testing before compression departure, the only one in China.
After sales guarantee, non customer induced damage, unconditional after-sales service for any faults, and zero cost solution for customers.
FAQ
Question 1: How many units is your factory MOQ?
Our MOQ is 1 unit .
Question 2: What is the shortest production time?
Our production time is 15 days for one unit(common products), if you need more than 5 or more than 10, we can offer you in 40days .
Question 3: How long time of your warranty?
Our warranty is one years or 30000km after send to your country .
Question 4: What certificate do you have?
All our products has orignal certificate and CCC and ISO certificate ,ASME ,ADR and so on,we accept SGS and BV identification.
Question 5: Do you make right hand drive trucks?
Yes,we do. Our standard Steering:Left-hand drive, if you need Right-hand drives, please inform us in advance.
Question 6: Where is your factory?Near Shanghai ,Guangzhou ,or Beijing?
Our factory is in central China,You can take plane to Wuhan airport from Shanghai ,Guangzhou ,or Beijing.(According to your journey).The distances between each these 3 cities to Wuhan are nearly the same. When you arrive Wuhan City,we can arrange driver to pick you up at Wuhan airport.It takes nearly 2 hours from Wuhan airport to our factory

---
