Product Details
Product Description
Product Description

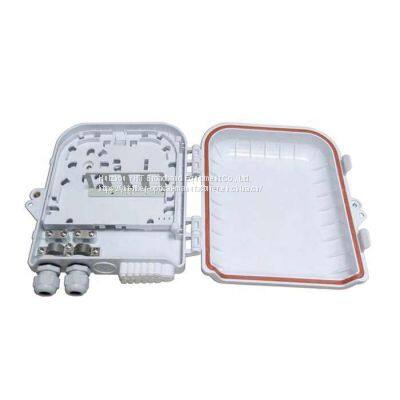

Manufacturing FTTH 12 Port fiber optic termination box distribution box
Fiber optic terminal box OTB-0212 is a box for fiber terminal distribution in optical fiber transmission and
communication network. It can be 12 fibers splicing, protection and distribution.
Features：
l Material: ABS plastic.
l Can accommodate 1x4,1x8 PLC splitter.
l Rainfall resistant, IP65 outdoor using.
l Can load 12pcs LC, FC, ST, SC … adapters.
l Wall mounting and pole mounting application.
l 2pcs cable entry ports with M20 cable gland (Max. cable diameter 12mm)
12pcs exit ports for FTTH drop cable.
Specification:
Model
| Capacity
| Dimension
| Remark
|
OTB-0212
| 12 ports
| 206.8x230.8x66.5mm
| 1 rotary splice tray
|
Application：
l FTTH access network.
l Telecommunication Networks
l CATV Networks
l Data communications Networks
Key AttributesIndustry-specific attributesType
Fiber optic terminal box
Other attributesModel Number
OTB-0212
Place of Origin
Guangdong, China
Brand Name
CSYHT
Material
abs
color
white or black
cable ports
2 cable gland& 12pcs FTTH drop cable
dimension
206.8*230.8*66.5 mm
Splice capacity
12 fibers
Adapter Types Supported
FC, SC, ST
Max. Number of Adapter
12 sc simplex
Application
outdoor wall mounted or pole mounted
Splice Method
Fusion
Accessories provided
Insulation tape, nylon tie, numbering paper, and fixer
Packaging and DeliveryPackaging Details
Carton
Port
Shenzhen
Supply Ability
500 Set/Sets per Day
Lead time
| Quantity (sets) | 1 - 1000 | > 1000 |
| Lead time (days) | 2 | To be negotiated |
For more customization details, message or email supplier!
>>
