US$50,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
After-sales Service
Installation and training
Suitable
Geotextiles or Other Needle Punching Products
Control
PLC Touch Screen or Button
Type
Nonwoven Textile Machine
Speed
High Speed, Middle Speed Customerized
for Road
Geotextile Making Machinery for Road
Mattress Machine
Coir Fiber Mattress Making Machine
Textile Machinery
Cocount Fiber Mattress Making Machine
Bale Opener
Bale Opener Machine
Carding Machine
Single Cylinder Double Doffer Carding Machine
Cross Lapper
Cross Lapper
Needle Punching
Needle Punching Loom
Oven
Gas Oven, Electric Oven, Diesel Oven
Cutting Machine
Winding and Cutting Machine
Transport Package
Export Standard
Specification
2-9.5meter customerized
Production Capacity
100-1000kg/H Customerized
Product Description

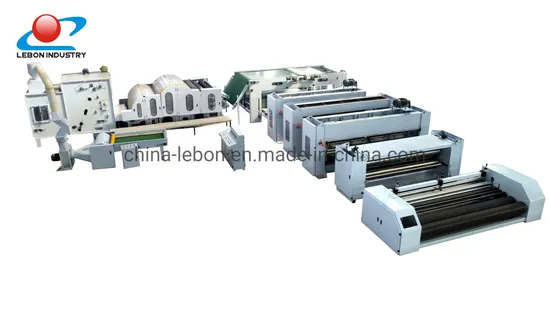

Nonwoven Machine Line Needle Punching Felt Making Machine/cocount fiber felt making machinery
Applications:
Needle punching machine line technology process is the very common and prevailing process in the nonwoven industrial.
With diverse machine combination and designs, needle punch production line is applicable for producing various felt, carpet, geotextile, shoe lining, filtration material, substrate layer for synthetic leather and asphalt felt, and other hundreds of innovative nonwoven products.
Geotextiles Production Line can make all kinds of needle punching geotextiles or other needle punching products. This needle punching machine production line can have additions such as batt and/ or felt drafters. Needle looms of diffrent needle types and/ or densities can be used dependent on end use of product.
1. High capacity: up to 1000kg/h
2. This machine line can process 100% long length fiber up to 120mm
3. Enclosed chamer to maintain a negative pressure which can control the airflow properly.
4.Enclosed cover for proper protection and easy maintenance
Technical Parameter:
| Machine width: | 1500-8000mm |
| Needle density: | 4000-7000s/m |
| Needle frequency: | 100-700RPM for middle speed,1000-1500RPM for high speed |
| Needle stroke: | 30-60mm |
| Capacity: | 100kg/h-1000kg/h |
| Available raw material: | PP, PET, Polymide, fiberglass, Carbon fiber, Cotton, Jute, etc |
>>
