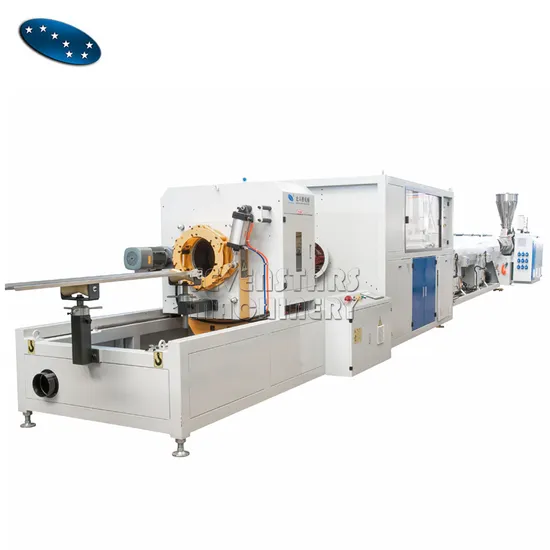

PVC Tube Pipe Extruder Extrusion Machine

Product Description

New type high output PVC water pipe making machine PVC pipe extrusion machine PVC pipe making machine PVC pipe extrusion line PVC pipe production line with low power consumption and high efficiency
Features of PVC pipe production line extruder machine
1) It is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
2) The set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.
3) The extruder and haul-off machine adopt the imported AC frequency control device.
The vacuum pump and hauling motor employ superior goods.
4) Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
5) It is additionally attched with length measuring apparatus and thickness increasing device.
6) The unit is of reliable performance and high production efficiency.
The pipe diameter is mainly from Φ 16mm-Φ 630mm. We also can design the machine according to your requirement
Main parameter of PVC pipe production line extruder machine

Extruder model	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	100000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB
Contactor brand	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Temperature brand	OMRON	OMRON	OMRON	OMRON	OMRON

---
