China Brand Water Tower Fire Fighting Vehicle 5313jp25 Special Truck

Product Description

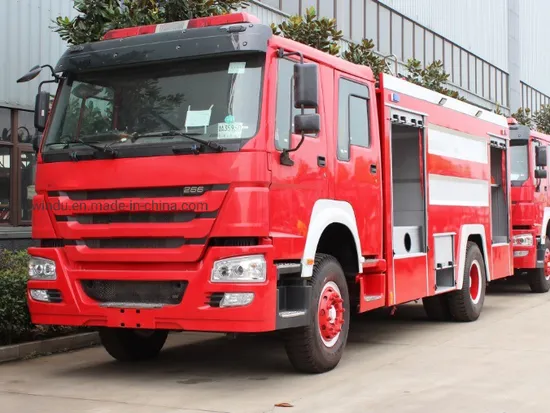

China Brand Water Tower Fire Fighting Vehicle 5313jp25 Special Truck
Products Description 1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers' request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
Product Paramenters

Chassis	Trunk ZZ5357TXFV464ME
Engine power(kW)	327
Max. torque(Nm)	2100
Cab Seats	2
Max speed(km/h)	90
Fuel tank volume(L)	300
Wheel base(mm)	4600+1400
Fuel	Diesel
Max working height(m)	25
Max. working outreach(m)	14.8
Engine power/GVW(Kw/t)	10.5
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥80
GVW(kg)	30600
Water tank volume(L)	8000
Foam tank volume(L)	2000
Water pump model	RSD100
Max. flowing of water pump(L/min@MPa)	6000/1.03
Overall dimensions(mm)	10070×2500×3770
Boom sections	3
Boom operating time(s)	<90
