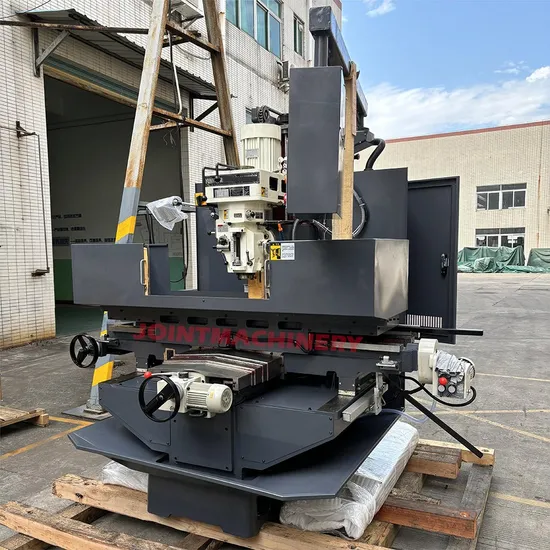

Precision Metal Fabrication Turret Milling and Boring Machine B600L

Product Description

Recombination Precision Vertical Horizontal Milling Machine
√ Experience exceptional stability and power with our Bed Milling Machine, boasting high rigidity and remarkable load-bearing capacity.
√ Featuring Taiwan's original precision milling head, complemented by a ball screw, and NSK P4 precision spindle bearing ensuring spindle tolerance of just 0.002mm for superior precision.
√ Our three-axis system employs precision ball screws that promise rapid movements and exceptional accuracy in positioning, enhancing operational efficiency.
√ Ideal for handling heavy and sizable workpieces weighing between 800-1000KG, ensuring reliable performance for demanding projects.
√ Constructed with a bed structure of Meehanite cast iron, our high-rigid structural design guarantees unwavering durability and performance.
1. WORKTABLE
Our worktable is the epitome of superior craftsmanship, featuring ultra-audio quenching, precision grinding, and meticulously scraped guides that ensure ultimate smoothness. Enhance its versatility by adding a rotary table for expanded multifunctionality.
2. TURRET MILLING HEAD
Our innovative turret milling head is engineered to swivel 45° forward-backward and rotate 90° left-right, enabling seamless milling of intricate angles with remarkable ease.
3. SPINDLE
Outfitted with a high-precision R8/NT30/NT40 spindle, our system guarantees an outstanding spindle runout precision of merely 0.003mm, providing unparalleled reliability and accuracy.
4. X/Y/Z AUTO FEED
Revolutionize your operations with our automatic X/Y axis feeding and electric Z-axis lift, significantly boosting productivity and simplifying your tasks.
5. DRO
Experience enhanced precision with our configurable 2-axis or 3-axis DRO, meticulously tailored to fulfill your specific needs and elevate overall performance.
Precision Metal Fabrication Turret Milling and Boring Machine B600L

Model				B600L
Table size			mm	1570*405
Travel		X axis	mm	1500
		Y axis	mm	350
		Z axis	mm	580
Travel of spindle quill			mm	150
Maximum distance from spindle nose to table			mm	760
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	58-3000
		60HZ	rpm	70-3600
	Rotation speed (Variable speed milling head)	50HZ	rpm	58-3250
		60HZ	rpm	70-3900
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt angle		Forward and Backward	°	0°
		Left and Right	°	±90°
Dimension			mm	2000*3050*2150
Weight			kg	2900

Shenzhen Joint Machinery Co., Ltd. is acclaimed globally for its expertise in the manufacturing and exporting domain, offering an impressive array of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Our diverse collection of premium milling and grinding machinery signifies our relentless commitment to providing exceptional machines and unparalleled services on a global scale. By seamlessly integrating advanced Taiwanese and German technologies, our production processes uphold superior quality and reliability, aligning with the highest industry benchmarks. Our machines are celebrated for their excellence in precision, stability, and dependability, adeptly managing a wide range of intricate machining operations. Our prestigious products enjoy worldwide acclaim, penetrating markets across Asia, Europe, South America, North America, and beyond. We are dedicated to fostering long-lasting partnerships with clients across the globe, consistently creating substantial business value collaboratively.

---
