Chengyu-FL7000W Computerized Metallographic Microscope for Lab

Product Description

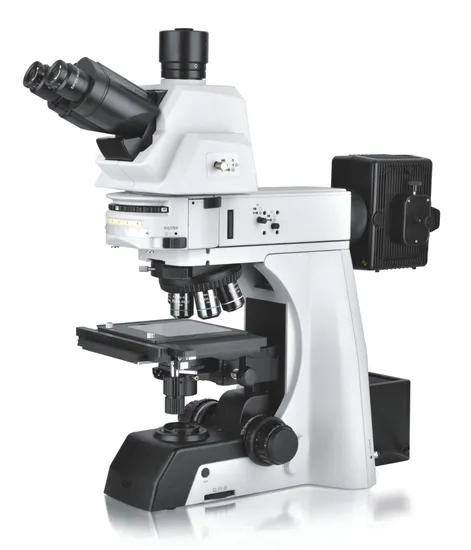

CHENGYU-FL7000W Computerized Metallographic Microscope

Standard Configuration		Machine model
Parts	Specification	FL7000W
Optical system	Finite distance chromatic aberration corrected optical system	·
Observation tube	Trinocular, tilted 30˚, (built-in polarizer, switchable)	·
Eyepiece	Large field of view WF10X (Φ18mm)	·
Standard objective lens (long-distance plan achromatic objective lens)	PL L5X/0.12 WD15.5 mm	·
	PL L10X/0.25 WD8.80mm	·
	PL L40X/0.6 WD3.73 mm	·
	PL L60X/0.75 WD1.34 mm	·
Converter	Four holes (inward ball positioning)	·
Focusing mechanism	Coaxial coarse and fine focusing, fine adjustment: 2μm, coarse adjustment with adjustable tension, with locking and limit device	·
Stage	Double-layer mechanical movable type (size: 185mmX140mm, moving range: 75mmX50mm)	·
Lighting system	6V 20W, halogen lamp, adjustable brightness; epi-illuminator with field diaphragm, aperture diaphragm, polarizing filter.	·
Color Filters	With frosted glass, yellow, green and blue filters	·
Metallographic analysis system	FMIA2022 genuine metallographic analysis software, Sony chip 5 million camera device, 0.65X adapter lens interface, high-precision micrometer (100x0.01mm, 100x0.01cm, calibration points: d = 0.15mm, d = 0.07mm).	·
Optional Configuration
Parts	Specification
Eyepiece	Wide field of view WF10X (Φ18mm) differentiated eyepiece	O
	Large field of view WF16X (Φ11mm)	O
Optional objective lens (long-distance plan achromatic objective lens)	PL L 20X/0.40 WD8.6mm	O
	PL L 50X/0.70 WD2.02mm	O
	PL L 80X/0.80 WD0.96mm	O
	PL L 100X/0.85 WD0.4mm	O
Camera device	12-megapixel Sony chip camera	O
Computer	HP	O

Note: "·" is standard configuration; "O" is optional
FAQ
1. Are you a manufacturer?
Yes, we are professional manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C

---
