| ITEM | VALUE |
| Model | QC12K 6X3200 |
| Max cutting thickness | 6mm |
| Max cutting width | 3200mm |
| Cutting angle | 1.5° |
| Backguage distance | 500mm |
| Throat depth | 120mm |
| Main motor power | 7.5kw |
| Weight | 6000kg |
| Size | 3840x1610x1620mm |

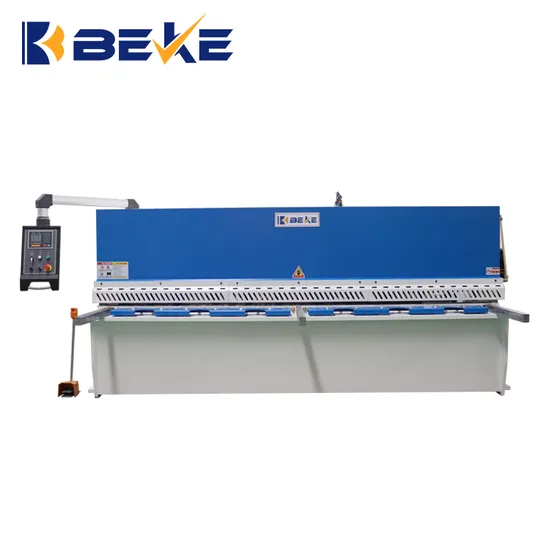

| BEKE QC12K Series NC shearing machine is in a circular arc movement mode, and the tool holder body of the pendulum shear is arc-shaped, and the point of the arc is used to ensure the straightness of the sheared material. If the customer wants to save costs, the precision of the shearing plate is very low, and the thickness of the shearing plate is relatively thin (usually less than 8mm is recommended), we recommend the customer to use this type of shearing machine. | |
