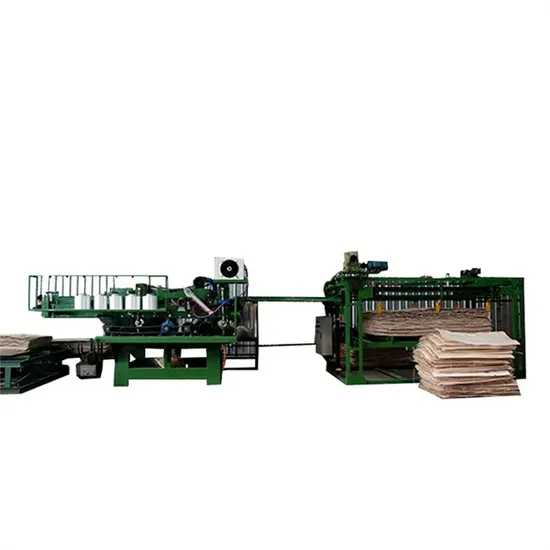

Woodworking Horizontal Core Veneer Composer Machine

Product Description

Woodworking horizontal core veneer composer machineThis machine is mostly used lateral composing, automatic rolling, automatic laying of the veneer with thickness of 1.0-3.6mm (commonly known as sandwich skin),in the production of laminated wood, LVL, multilayer board, flooring substrate, furniture board, plywood, container board, melamine board, block board. In the area of international and domestic plywood production process ,it is the first program designer and implementer using the rolled veneer, change the traditional manual planking process, to achieve the plywood planking automation, continuous and economizing
Machine Parameters:

machine model	PBJ-4X8
Whole machine	Length	10000mm
	Width	2600mm
	Height	2300mm
Drive motors	Front drive motor	3Kw x 1set
	Back drive motor	3Kw x 1set
	Front cutting knife	3Kw x 1set
	Back cutting knife	3Kw x 1set
	1# Belt conveyor motor	1.5kw x 1set
	2# belt conveyor motor	1.5kw x 1set
	Lifting motor of stacker	3Kw x 1set
Glue tank	Glue thread	4Kw
	Glue point	4Kw
Total motor power	26Kw
Electrics	AC Contactor	Schineider
	PLC	DELTA
	AC conditioner	GREE
Cutting knife length	1400mm
Working thickness range	1.2-3.5mm
Working capacity	250-300sheets of 4x8Ft
Machine installation size	14000mm Length x 4000mm width
Machine weight	5800Kgs

More Photos:
Advantage:
1.One operator, no overlap and seamless, no break;
2. Save 70% of core finishing
3.Save 80% assembling workers
4.Save 50% puttying workers
Working principle:
core veneer (1.2-3.6mm thickness) after dying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. with this machine, customized board of different sizes an be spliced.

---
