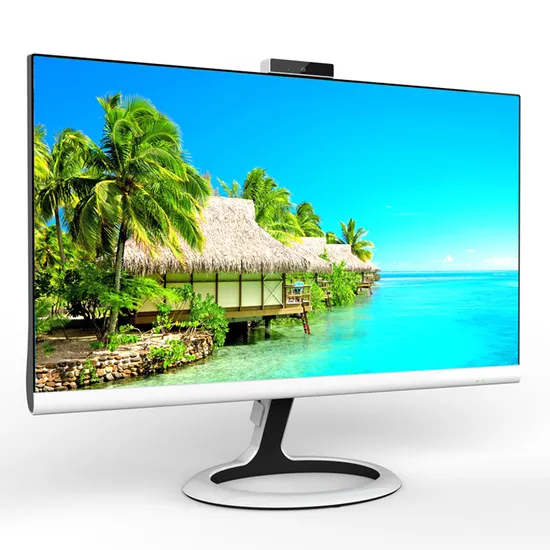

23.8 Frame-Less Aio Computer with Ads IPS Panel, All in One Case

Product Description

Feature:
FrameLess 23.8" latest new design
Full CE /EMI approve metal steel chassis
Pad lock avaliable
ODD support to install fix
Easy install rear panel with big mesh design, for incrase CPU cooler height and improved air cooling
Support original intel standard Cooler for saving client's cost
Build-in Card Reader(3in1), Support MS/MMC/SD various memory cards
Adjustable Top Web-Cam design, to get correct photo at right position. and security your office via internet hack
Cable managerment by the unique holder design on support
Build-in Wifi solution to keep compact and clean appearance
Adjustable support in 15-20 degree
H110/H81..etc Motherboard are optional
Black or White color optional
PIO(Parts in one) configuration table:

Model Number		2386 White Edition
LCD Panel	Panel Type Display Size Panel Grade	LED 23.8 frameless IPS/ADS A++
	Rate of Panel Resoluiton	16:9 1920*1080
	Brightness Contrast	250CD/square meter 1000:1
	Surface treatment Viewing angle	Matte 89/89/89/89; 178 degree
Standard part	Power supply(Included)	Flex 1U PSU 150W-200W
	USB(Included)	On frame, USB2.0*1 Type-c*1
	Card-Reader(Included)	On frame Build-in Card-Reader(SD/MMC/MS)
	Speakers(Included)	8Ohm3W
	Input signal	HDMI*2
Optional Part	WebCam/Mic	500W (5.0Mpx)With Dual Microphone,Push Up/Down
	CPU Cooler (Option)	E86/E90( Height≤40MM)
	Touch Panel	Optional
	FingerPrint	Optional
	WIFI+BT	Optional
Hardware factor	Motherboard Type	Mirco ATX: 244.4*210mm ITX:170*170mm
	Graphics card	L≤170mm*W≤106mm* H≤30mm
	HDD Type	SSD*2
	ODD Type	Support to fix 9.5MM slim ODD
Packing Ref	Product size	Without Stand (L*H*D) 538*323*71mm	Included Stand (L*H*D) 538*453*71mm
	Weight Info	NW:6.6KG GW:7.7KG
	Carton Size	EPE/Carton	590*170*465mm
Additional Note		The base stand adjustable, height range is 22mm*2

---
