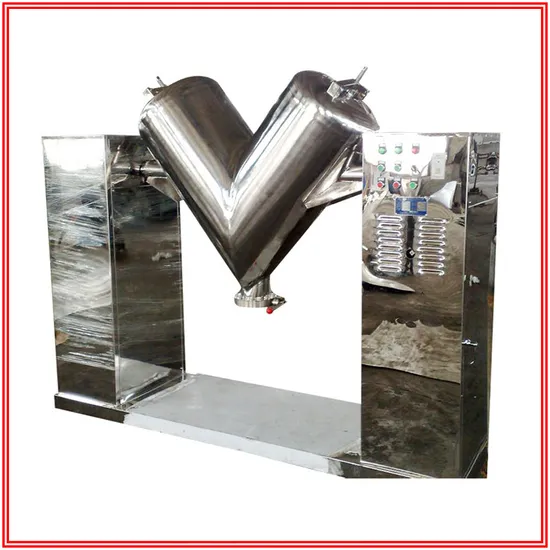

V Mixer for Food Powder Mixing

Product Description

V-type powder mixer it is suitable for mixing chemicals, food, medicine, feed, ceramics, metallurgy and other industries powder or granule-like material. Aircraft structure is reasonable, simple to operate airtight, easy access to materials, (manual or vacuum feeding) cylinder made of stainless steel for easy cleaning, it is one of the basic equipment of enterprises.
Description
The machine, food dry powder, mix granular materials.
The unique structure of the mixing drum machine, mixing, high efficiency, no accumulation expected. The whole structure is simple, easy to operate. An outer surface and material contact parts are made of stainless steel, handsome in appearance, maintenance, easy to clean.
Principle and Structure
This machine is equipped with a motor and reducer end, motor power transmitted through a belt gear reducer coupling pass through V-type barrel. So that V-shaped barrel of continuous operation, the material in the barrel to drive the barrel, down, left, right and mixed
V-type mixer Application
Applies to material flow is good, mixing small physical differences particulates, as well as the degree of mixing mixing time is short but requires less demanding material mix, since the material flow within the V-shaped mixing vessel steady, will not damage the materials prototype, Therefore, V-type mixer is also suitable for fragile, easy to wear mix granular materials, or finer particles, massive, comprising mixing the materials with certain moisture, widely used in pharmaceutical, chemical, food and other industries.
Characteristics
The structure of mixing barrel is unique.The mixing effciency is high, no dead corner. The barrel is made of s tainless steel and its internal walls a repolished. The outside qppearance is beautiful. The mixing is uniform, with wide application.
Material to be dried
The mixer is used for mixing the dry material grains in the medical,chemical,food,metallurgical and other industries.
Technical Parameter

spec\item	total volume L	material capcity L	working capacity kg	rotating speed rpm	power kw	weight kg
0.05	50	25	15	25	0.55	500
0.15	150	75	45	20	0.75	650
0.3	300	150	90	20	1.1	820
0.5	500	250	150	18	1.5	1250
1	1000	500	300	15	3	1800
1.5	1500	750	450	12	4	2100
2	2000	1000	600	12	5.5	2450
3	3000	1500	900	9	5.5	2980
4	4000	2000	1200	9	7.5	3300
5	5000	2500	1500	8	7.5	3880
6	6000	3000	1800	8	11	4550
8	8000	4000	2400	6	15	5200
10	10000	5000	3000	6	18.5	6000

---
