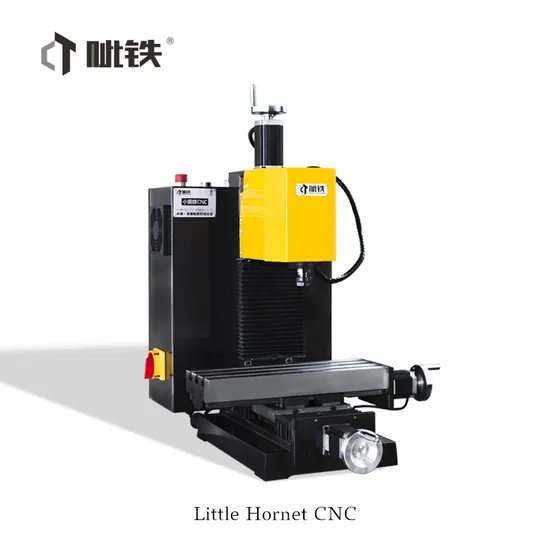

Small Size Cheap Mini CNC Mill Milling Machine for Hobby User

US$2,294.00
1-4 Sets
US$2,202.00
5-9 Sets
US$2,110.00
10+ Sets

Basic Info.

Model NO.
Small Wasp
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
600*760*790mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
500

Product Description

Table size 400x140mm
T-slots size 12x3x24mm
Maximum load 40kg
X spindle travel 220mm
Y spindle travel 120mm
Z spindle travel 200mm
Spindle taper ER20
Distance from spindle to column guide rail 190mm
Distance from spindle end to table surface 280mm
Spindle speed range 3000r/min
Rated power of spindle motor 400w
Spindle rated torque 1.4N.M
X, Y, Z axis motor torque XY:2.5N.M;Z:3.2N.M
X, Y, Z axis maximum feed rate 2500
positioning accuracy ±0.02mm
Repeat positioning accuracy ±0.015mm
Net weight/Gross weight 95KG/115kg
Overall dimensions ≈600x760x790mm
