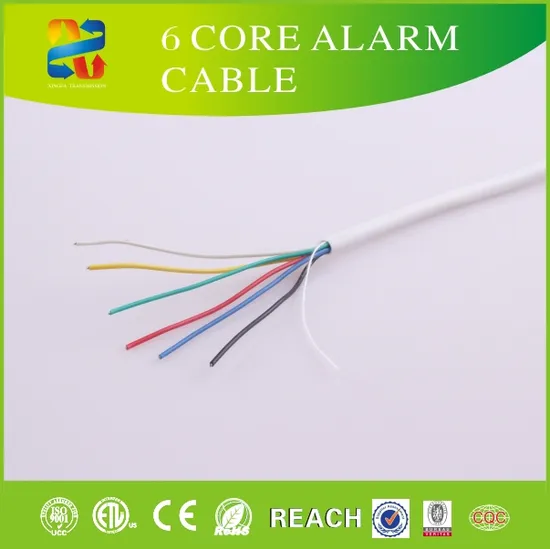

Made in China 4c/6c/8c Alarm Cable (RoHS CE Approved)

Negotiable 10,000 Meters (MOQ)

Basic Info.

Model NO.
Alarm Cable
Certification
CE, ISO, RoHS
Center Conductor
Copper Clad Steel/Solid Bare Copper
Dielectric
PVC
Shield
Al Foil
Jacket
PVC
Color
Per Customers′ Special Requirement
Certificate
ISO9001, CE, ETL, RoHS, Reach, BV
Transport Package
Coil, Wooden Reel, Plastic Reel, and Paper Reel
Specification
CE, ROHS, REACH, ETL, UL, ISO, SGS, BV
Trademark
Xingfa or OEM
Origin
Hagnzhou, China
HS Code
854491100
Production Capacity
18000kilometer/Month

Product Description

high quality alarm wire for security alarm system
1)Structure: Unshielded, shield
A> Conductor: CCA (TC, BC, TCCA are available)
B> Cable core: 2C, 4C, 6C, 8C, 10C, 12C, 14C, 16C, 20C
C> Insulation: PVC
D> rip cord: Yes
E> Shield: Al/foil
F> Drain wire: No
G> Jacket: PVC
2)Application:
These cables are used for installation in signaling and alarm system.
This is suitable for the connection of contacts, detectors and sensors,
Infra-red as well as micro wave or mixed technology systems to the switch board.
3) More type

Type
Normal Area
(mm2)
Specifications
(mm)
Insulation Dia
(mm)
Outside Diameter.
(mm)

Unscreened
2x0.22
2x7/0.20
1.0
3.2

Unscreened
4x0.22
4x7/0.20
1.0
3.7

Unscreened
6x0.22
6x7/0.20
1.0
4.3

Unscreened
8x0.22
8x7/0.20
1.0
4.6

Unscreened
10x0.22
10x7/0.20
1.0
5.4

Unscreened
12x0.22
12x7/0.20
1.0
5.6

Unscreened
14x0.22
14x7/0.20
1.0
5.8

Unscreened
16x0.22
16x7/0.20
1.0
6.1

Unscreened
18x0.22
18x7/0.20
1.1
6.5

Unscreened
20x0.22
20x7/0.20
1.1
6.8

Unscreened
30x0.22
30x7/0.20
1.1
8.5

Unscreened
40x0.22
40x7/0.20
1.1
10

Screened
2x0.22
2x7/0.20
1.1
3.4

Screened
4x0.22
4x7/0.20
1.1
3.9

Screened
6x0.22
6x7/0.20
1.1
4.5

Screened
8x0.22
8x7/0.20
1.1
4.8

Screened
10x0.22
10x7/0.20
1.1
5.6

Screened
12x0.22
12x7/0.20
1.1
5.8

Screened
14x0.22
14x7/0.20
1.1
6.1

Screened
16x0.22
16x7/0.20
1.1
6.5

Screened
18x0.22
18x7/0.20
1.1
6.9

Screened
20x0.22
20x7/0.20
1.1
7.3

Screened
30x0.22
30x7/0.20
1.1
8.9

Screened
40x0.22
40x7/0.20
1.1
10.8

4)Electrical Charateristics

Conductor Resistance:		 <125ohms/km
Resistance Unbalance: <2.5%
Dielectric Strength DC: 2000V/1min
Insulation Resistance: >3000Mohms-km
Impedance: 100ohms+/-10%
Mutual Capacitance: <100nF/km@1KHz

5)Physical Properties

Conductor tensil strength:		 >245Mpa
Conductor Elongation: >10%
Insulation tensil strength: >10Mpa
Insulation Elongation: >200%
Insulation Hot shrinkage: <5%
