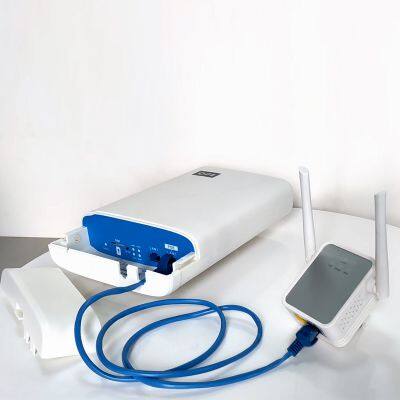

| Description | Cat 4 POE 24V/1A waterproof outdoor lte router with wifi extender |
| Item no. | HY8172+HY8760 |
| CPU | ASR 1802S+MT7628N |
| Interface | 1 WAN(POE 24V/1A)+1 LAN |
| Button | Reset |
| Power Suppply | DC 12V/1A |
| DDR/SPI | 64MBytes/16MBytes |
| SIM Card | 2 FF |
| Software | APN Setting、Device Settings、Routing Settings、Firewall Settings |
| System | Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux |
| Browser | IE (7.0 and later), Firefox (3.0 and later), Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later) |
| LED | PWR，WiFi，Internet，Interface，Signal Strength LED |
| ML352-AU | FDD B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66; TDD B38/B40/B41; WCDMA B1/B2/B4/B5/B8 |
| HY8760 | |
| Chipset | MT7628KN |
| SPI FLASH | 1MB |
| RAM | 8MB |
| Protocol | IEEE 802.11n; IEEE 802.11g; IEEE 802.11b |
| Transmit power | 802.11b 18dBm±2dBm; 802.11g 17dBm±2dBm; 802.11n 16dBm±2dBm; |
| Receiving sensitivity | 802.11b: -90dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER |
| Channel | 1-13 |
| Wireless speed | 300Mbps |
| Frequency band | 2.4GHz |
| Antenna | 2dbi x 2 |
| Port | 1 WAN/1 LAN |
| LED | SYS/LAN/WIFI/WPS |
| Button | Reset,WPS |
| POE output | 24V/1A |
| Operating Environment | Operating Temperature:Normal:0°C to +45°C; Operating Temperature:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95% |
| Dimension | Device: 26*25*8cm; 0.90Kg/pc; |
| 24pc/ctn; CTN size: 52*47*51cm; G.W.: 21Kg/ctn; |
