Hq Series Multi-Purpose Machine Hq400/3A, Hq400/3b, Hq400/3L

US$790.00-900.00 1 Piece (MOQ)

Basic Info.

Model NO.

HQ400/3A, HQ400/3B, HQ400/3L

Number of Shaft

Hole Diameter

15mm

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Modle

Hq400/3A ,Hq400/3b,Hq400/3L

Swing Over Bed

420mm

Distance Between Centers

400-500mm

Spindle Hole

20mm

Spindle Taper

Mt3

Taper of Center

Mt3

Transport Package

Plywood Case

Specification

ISO9001-2000 CE TUV

Trademark

White Eagle

Origin

Made in China

Production Capacity

1000pcs/ month

Product Description

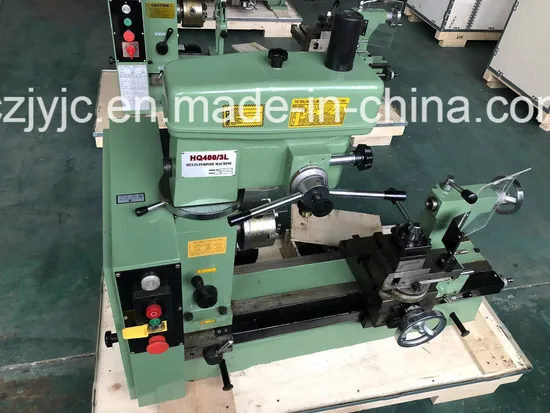

HQ series multi-purpose machine HQ400/3A ,HQ400/3B,HQ400/3L
Features :
A kind of combination machines with turning, milling, drilling and threading.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation and economization
Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils'
Making, etc.

MULTI-PURPOSE MACHINE		HQ400/3A	HQ400/3B	HQ400/3L
LATHE	Swing over bed	420mm	420mm	420mm
	Distance between centers	400mm	400mm	500mm
	Max. longitudinal travel	380mm	380mm	480mm
	Max. cross travel	120mm
	Taper of spindle	M.T.3
	Spindle hole	φ20mm
	Step of spindle speed	7
	Range of spindle speed	160-1360 r.p.m
	Barrel travel	70mm
	Taper of center	M.T.3
	Metric thread range	0.7-2mm
	Inch thread range	7-30T.P.I
	Longitudinal range of automatic feeding	0.088-0.28mm/0.0035-0.011
DRILLING & MILLING	Max. drilling capacity	φ15mm
	Worktable size (L*W)	200×150mm²
	Max. end mill capacity	φ20mm
	Max. face capacity	φ63mm
	Spindle travel	85mm
	Headstock travel of up and down	80mm		80mm
	Spindle taper	M.T.3
	Step of spindle speed	14
	Range of spindle speed	117 - 1300 r.p.m
	Swivel angle of headstock	±360°
MOTOR	Motor power	0.55Kw
SHIPMENT DATA	Packing size	1030×580×1070mm		1132×580×1070mm
	N. weight/G. weight	185kg/220kg
	Loading amount	44pcs/20container
