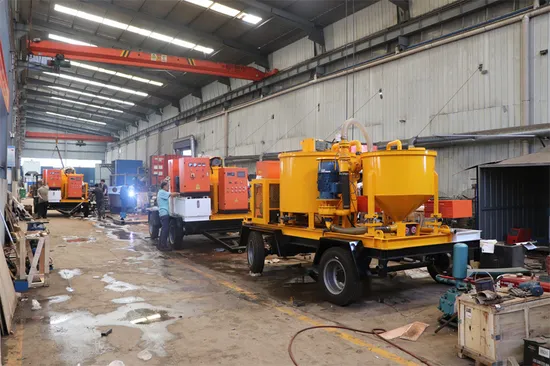

Jet grouting machine with completer set

Product Description

Jet grouting machine with completer set Product Description
LGP400/1000/95/165DPL-E/A Grout Mixer and Pump are integrated with a screw feeder, mixing, agitator, and horizontal hydraulic pump. It is mainly used to make such as cement slurry or bentonite slurry, etc., for injecting in the sub-soil for soil consolidation, piling, or even for long transport of material.
Compared with the traditional grout mixer and pump machine, LGP400/1000/95/165DPL-E/A Media has several advantages: high-speed, high-shear colloidal mixer causes a vortex flow to ensure mix quickly and evenly; Two pieces of high-pressure plungers to stabilize the consistency of the grouting flow; Grouting pressure and displacement is step-less adjustable; Added the automatic operation mode, which greatly improves the working efficiency. Besides, compact in size and easy to operate. And it also takes up a small space. Therefore, this machine is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc. Detailed Photos

Our Advantages
WGP400/1000/95/165DPL-E/A Grout Mixer and Pump is a fully automatic grouting machine.
MIXER STATION
1. 3 sets of stable weighing modules

2. Lower charging material height for mixer
3. High-speed colloidal grout mixer
4. Smoothly outflow slurry through pneumatic pinch valve
5. Precision of the ultrasonic liquid level meter
6. PLC machine control
Visualization interface
Simple operation interface
Manual mode and fully automatic mode
Multiple formulations can be set up

GROUT PUMP STATION
1. Grouting pressure, displacement is step-less adjustable
2. Simple structure, light weight, easy maintenance
3. Double grouting plungers, continuous output flow with less pulse
4. Less spare parts ensure low maintenance costs
5. With the function of record and display grouting pump reciprocating times by a counter
6. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection
7. Electric motor and hydraulic driven. Anytime, overpressure occurred, the hydraulic safety protection will be worked
Product Parameters

Specification (with Electric motor drive):
1. Mixer Station 1.1 Pneumatic Pinch Valve: the slurry flows more smoothly; 1.2 Ultrasound Fluid Level Meter: height of agitator can be accurately measured; 1.3 PLC+Touch Screen: manual mode and fully automatic mode. 2. Grout Pump Station 2.1 Grouting pressure, displacement is step-less adjustable; 2.2 Double grouting plungers, continuous output flow with less pulse; 2.3 With the function of record and display grouting pump reciprocating times by a counter; 2.4 The motor has an overload protection function; 2.5 Hydraulic system with oil temperature overheating protection; 2.6 Electric motor and hydraulic driven. Anytime, overpressure occurred, hydraulic safety protection will be worked. 3. Trailer 3.1 With steering function; 3.2 Tripod height is adjustable.
Mixer Station
Mixer	Effective Volume	400 L
	Max. Mixing Capacity	10m³/h
Circulation Pump	Motor Power	11 Kw
	Rotating Speed	1450 r/min
	Circulation Capacity	1000L/min
Agitator	Effective Volume	1000 L
	Motor Power	3.0 Kw
Water Supply System	Motor Power	4.0 Kw
	Displacement	20 m³/h
	Head	30 m
Air Supply System	Motor Power	2.2 Kw
	Displacement	0.25 m³/h
Control System	Mode	PLC
	Power	DC 24V

Grout Pump Station
Plunger Diameter		85mm
Plunger Stroke		300mm
Adjustable Pressure		0-16.5MPa
Adjustable Flow Rate		0-95L/min
Discharge Pipe Size		G1 1/4"
Inlet Pipe Size		G2"
Oil Tank		200L
Power Unit		37Kw
Max. Grain Size		2mm
Working Pressure		16.5MPa
Dimension(L×W×H) without Screw Feeder@Weight		3820×2280×2300mm@3750Kg
Screw Feeder	Output	30t/h
	Motor	5.5Kw
	Dimension@Weight	3700×600×800mm@280Kg
We also could accord to your demands to customize. All parameters are obtained by water test.
