Hot Sales Myk4080 Small CNC Surface Grinding Machine Three Axis Automatic Feed

Product Description

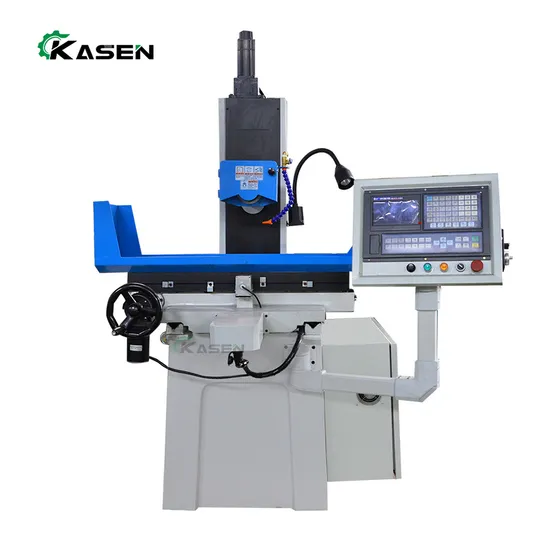

CNC Surface Grinding Machine Myk4080 Hydraulic CNC Surface Grinder
Product Description
Characteristics:1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.6. Machine adopts full enclosed casing, can completely cover the whole of the working area, effectively prevent the splash of the cooling liquid and iron filings, and according to the requirements of clients connected ceiling spray dust removal device. (optional)7. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.Main technical specifications:

Specifications				Units	MYK4080
workbench	Worktable size (L * W)			mm	800x400
	Max. travel of table			mm	900x500
	Table T slot (slot number x slot width)			mm	3x14
Grinding head	Special grinding wheel size (o. d * w * i. d.)			mm	Ø350×40×Ø127
	Distance spindle center line to working table			mm	600
	Grinding wheel speed			r/min	1450
The amount of feed	Table longitudinal (left and right) speed			m/min	3-25
	Table transverse (front and rear) feed handwheel feed			m/min	0.5-15
	Grinding head(up and down)automatic feed			mm	0.005-0.05
	Grinding head up and down is fast lifting speed (approximate value)			m/min	0.6
Hydraulic system	Hydraulic motor			KW	2.2
	working pressure			MPa	4
	Fuel tank capacity			L	100
	Maximum flow rate			L/min	20
Motor power	Spindle motor			kw	4
	Cooling motor			W	125
	Elevator servo motor			kw	1.0
	Front and rear servo motor			kw	1.0
working accuracy		The process surface of the base level of the parallel degree		mm	300:0.005
		Surface roughness		μm	Ra0.32
Machine weight			Net weight	kg	3000
			Gross weight	kg	3200
Suction cup specification				mm	400x800
External size (L * w * h)				mm	2550x2000x2100

Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
