3 Phase 380V 50Hz, 44kw( Running Consumption 20K Soup Paper Bowl Kebab Noodle Boxes Machine

US$73,000.00-94,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XZT-150W-doner box
Required Paper
Single Side PE Coated Paper
Automation
Automatic
Logo Printing
Without Logo Printing
Certification
CE
Customized
Customized
Condition
New
Weight
3500kgs
Size
15-57oz
Air Supply
0.6MPa(Running Consumption 0.5nm3/Min)
Power Supply
3 Phase 380V 50Hz, 44kw( Running Consumption 20K
Transport Package
Wooden Case
Specification
2760L*2160W*1925H
Trademark
New Smart
Origin
China
HS Code
8441309000
Production Capacity
100sets/Year

Product Description


High-speed doner box-making machine (unless doner box-making machine we also have paper cup forming machines, paper bowl machines, and paper cup packing machines...)
Product Description
1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
3. It replaced the market with almost a gear /chain transmission and cam design paper cup machine.
4. It provides flexibility, speed, affordable capital cost, and low maintenance.
Product Parameters
ModelXZT-150W doner Box Machine
Size15-57oz (Max bottom130mm, top 150mm, height135mm) or other customized sizes
Material170-380GSM single or double PE/ PLA coated paper(0.25-0.5mm thickness)
Speed130-150pcs/min
Power supply3 phase 380V 50Hz,44KW( running consumption is 20KW)
Air supply0.6Mpa(running consumption 0.5Nm3/min)
Dimension(mm)2760L*2160W*1925H
Weight3500kgs

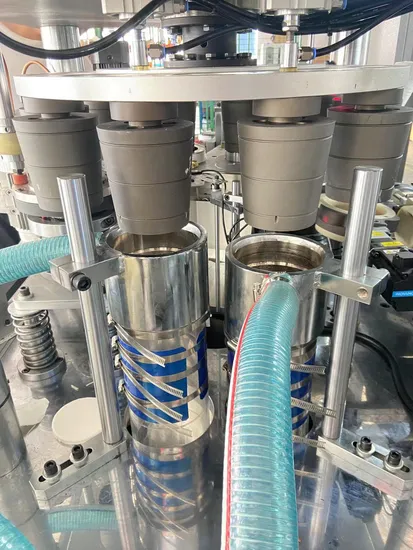

Detailed Photos
Loading table(about 1meter) with full cup fan paper for forming 3000-4000 boxes (depends on
The thickness of the paper) at a time. Conveyor Fan Wall Paper Feeding by Step Motor.
The paper bowl bottom forming device uses the latest heating process to solve the traditional machine problem which must punch the bottom paper into the mold itself (making the mold bottom edge too thin that easily damaged).
Our mold chooses whole solid aluminum material made, simpler and more durable.

Sample Show
Our machines produce very well-detailed paper products with stronger sealing.
Workshop
The workshop is well organized and our technicians are responsible for every step of the assembly process.
Machine Maintenance
All our machines are CE-certified.
EXHIBITION
We attend trade fairs regularly and look forward to meeting you in the near future.FAQ
Pre-sales issues_____
Q1- Is your company a factory or a trading company?
A1- We are a factory with more than 20 years of technical experience.
Q2- Where is your factory? How can I visit your company?
A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.
Q3- What is the suitable material for your machines? What size of cup/bowl you can make?
A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines
We can make paper cups/bowls from 4oz-57oz.
Q4-What kind of machines do you produce?
A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine.
Q5- What information should I let you know if I want to get a quotation?
A5- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.
Problems in sale_____
Q1- About payment term
A1- 30%T/T in advance, the rest paid before shipment.
Q2- Order tracking
A2- After the customer places an order,our company will send professional personnel to track the order and regularly report the production progress to the customer.After sales question_____
Q1- Warranty period of the product
A1- We offer one year warranty. And we also can dispatch engineers if conditions permit. Online instruction is also available.
Q2- About machine maintenance
A2-We will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.
