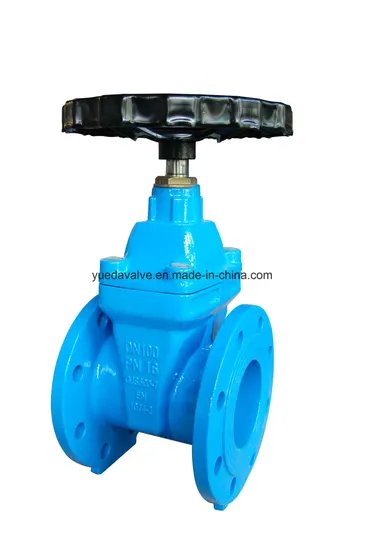

DIN3354 Pn16 Double Flange Gate Valve

Product Description

Product Description
DIN3354 Ductile Iron Cast Iron Non-Rising Stem Resilient Seated Gate Valves
1.Material list and Application:1. Material :

Body	Ductile Iron
Handwheel	Ductile Iron
Bonnet	Ductile Iron
Wedge	QT500-7 GGG50 with NBR,EPDM OR FPM coating
Stem	Stainless steel
stem nut	Brass
Middle Flange Washer	NBR/EPDM/FPM
O-Ring	NBR/EPDM/FPM
Support ring	ABS+EPDM

2.Related Standard:

Design Standard:	BS EN1171/CJ/T216 According requirements of customer(s)
Socket ends:	Fitted with NBR/EPDM
Face to face dim	EN558-1/BS5163/GB12221
Inspection & testing:	BS EN 12266-1,EN1074-2,GB13927
Operator	Handwheel,Gearbox,,Thimble,Electric Actuator,Pneumatic
DN	50-800
PN	1.0/1.6/2.5 Mpa
Coating	Fusion-bonded epoxy 200-250 microns inside and out side

2.Application
The gate valve with socket ends can be applied to potable water systems,industries of foodstuff and medicine,industrial water supply and drainage and dispose of sewage as well as natural gas and gas and so on.
Qualification certificate
Product Parameters
Detailed Photos

FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB,CIF all acceptable.

---
