Xz320 320kn Horizontal Drilling Machine

US$96,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

XZ320

Controlling Mode

CNC

Number of Shaft

Hole Diameter

>200mm

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Engine

D6114zg

Engine Rated Power

140kw

Max.Pullback/Thrusting

320kn

Dimension (Lxwxh)

7100×2300×2500mm

Overall Weight

10500kg

Transport Package

Nude Packing

Specification

CE, ISO9001

Trademark

XCM

Origin

Jiangsu, China

HS Code

84306919

Production Capacity

100 Set/Sets / Month

Product Description

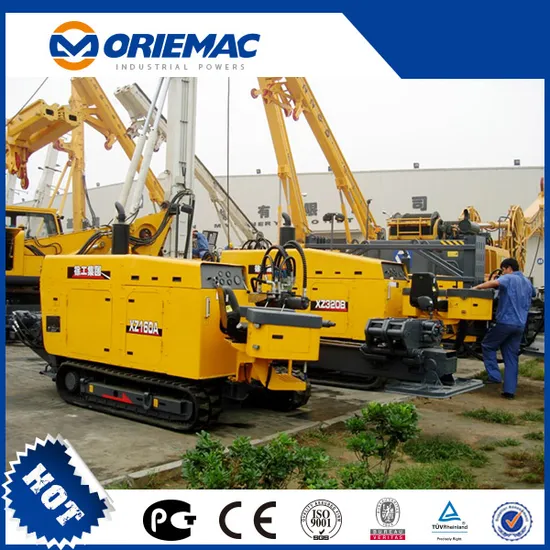

Horizontal Directional Drill (XZ320)
These kind of horizontal directional drill mainly used under the condition of non-excavating ground surface, laying and replacing various kinds of underground pipes and lines.
The machine features advanced performance, high efficiency, and comfortable operation, and the key parts
All matches international standards. It is the optimal equipment for the construction in the fields of water
Supply, gas supply, as well as electricity, telecommunication, heating, and petroleum supply.

Model			XZ280		XZ320
Engine Model			Shangchai D6114ZG		Shangchai D6114ZG
Rated engine power(KW/r/min)			140/2300		140/2300
Max. pullback/thrusting(kN)			280/280		320/200
Max torque of driving head(N.m)			10000		12000
Driving head speed(r/min)			0-120		0-140
Bore diameter(m)			400
Max backreaming diameter(mm)			Ø750		Ø800
Drill pipe length(single)(m)			3		3m
Drill pipe diameter (mm)			Ø73		Ø73
Drilling angle(@)			10-23		10-20
Max flow rate of mud(L/min)			250		320
Max mud pressure(bar)			80		80
Overall weight(kg)			12500		10500
Dimension (mm)	Length	7100		7100
	Width	2260		2300
	Height	2450		2500
