US$5,000.00-40,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
All Kinds of Aquatic Plants
Transmission
Hydraulic System
Portable Harvester Type
Aquatic Weed Harvesters
Certification
ISO9001:2008, CE, SGS
Application Field
Agriculture, River,Lake,Pond,Hydropower Station,etc
Overal Size(M)
7.3*2.4*2.7
Transport Package
Container
Specification
7.3mx2.4mx2.7m
Product Description
High Quality Aquatic Weed Harvesters Characteristic
1.This ship is a steel ship with two ends and single pontoon. It adopts transversal ribs and longitudinal frame structure,which completely conforms to the requirements of hydro mechanics and reduces the resistance to the lowest.Thus the efficiency of the ship is improve
2.This ship is mainly used for collecting and salvaging the algae in lakes and rivers. At the same time, the algae can be filtered, draining, dried into algae biscuit directly on ship, and all the collecting, filtration, draining can be completed by one man via controlling the control desk in the operation room, which is easy and convenient.
3.The algae collecting inlet is equipped at the bow, and sundries filter drum is equipped inside, which can prevent the suction of big garbage and avoid damage of algae collecting pimp.
4.The alage collecting inlet can adjust collecting depth according to requirements via hydraulic jacking device.The adjusting width is 1.7 - 4.5m.
| Technical Parameters |
| Model | RL-AWH700 | RL-AWH900 | RL-AHW1300 | RL-AWH1600 | RL-AWH2100 |
| Overal size (m) | 7.3*2.4*2.7 | 9.5*3.6*2.8 | 13.5*4*2.8 | 16*4.5*4.2 | 21*6*5.3 |
| Hull size (m) | 4.3*1.9*0.9 | 6*2.8*1 | 8*3*1 | 9*3*1 | 11.6*1.8*1.5 |
| Weight (kg) | 1590 | 5000 | 8080 | 9500 | 20200 |
| cutting wide (m) | 1.5 | 2 | 2.5 | 2.5 | 3.0 |
| cutting dept (m) | 1.2 | 1.5 | 1.5 | 1.5 | 1.8 |
Details photo

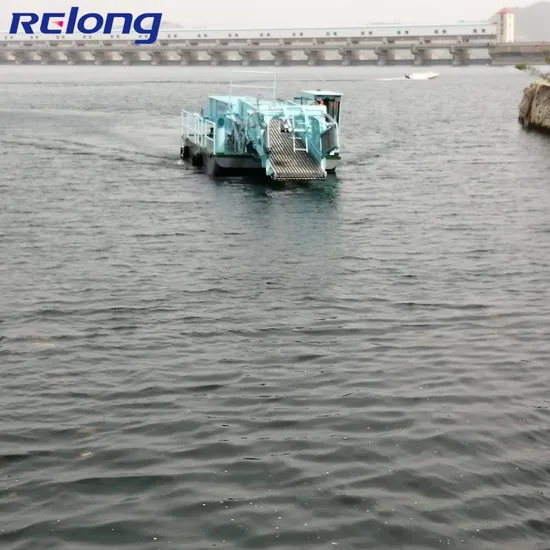

Working area
Before and after cleaning
Our product
RELONG STORY
Relong Environment Technology Co., Ltd. is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design,production,installation,and operation management.
CERTIFICATE
CASE
