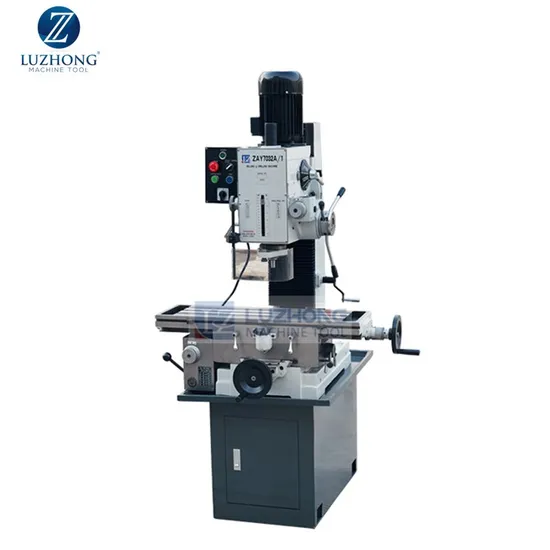

Drilling and milling machine price ZAY7045A/1 bench drilling machine with milling

Product Description

Drilling and milling machine price ZAY7045A/1 bench drilling machine with milling Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
1.Milling drilling tapping boring and reaming
2.Head swivels ±90° vertically
3.Adjustable gibs on table precision.
4.Micro feed precision
5.Strong rigidity powerful cutting and precise positioning.
6.Worktable auto-feeding in X, Y Axis.
7.Spindle speed step-changed cyclically and spindle auto-feeding And cyclic change of feeding speed
Product main technical Specifications:

MODEL	ZAY7032A/1	ZAY7040A/1	ZAY7045A/1
Drilling capacity	32mm	40mm	45mm
Max.boring diameter	50mm	60mm	70mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Max distance from spindle nose to table	400mm	400mm	400mm
Min distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Auto-feeding step of spindle	6	6	6
Auto-feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Auto-feeding step of spindle (longitudinal/cross)	6	6	6
Auto-feeding amout of worktable	24,35,49,73, 104,145mm/min	24,35,49,73, 104,145mm/min	24,35,49,73, 104,145mm/min
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	165mm	165mm	165mm
Left and right travel of table	450mm	450mm	450mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/Gross weight	355kg/415kg	358kg/418kg	360kg/420kg
Packing size	930×770 ×1160mm	930×770 ×1160mm	930×770 ×1160mm
Loading amount	36pcs/20'container	36pcs/20'container	36pcs/20'container

Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
