| ITEM | VALUE |
| Model | WE67K 110T3200 4+1Axis |
| Slider Stroke | 200mm |
| Max opening Height | 480mm |
| Throat Depth | 400mm |
| Length of Working Table | 3200mm |
| Width of Working Table | 150mm |
| Dimension | 3850x1850x2600mm |
| Weight | 8000KG |
| Main Motor Power | 7.5KW |
| Warrenty | 2 years |
| Axes | Y1 ,Y2, X, R |

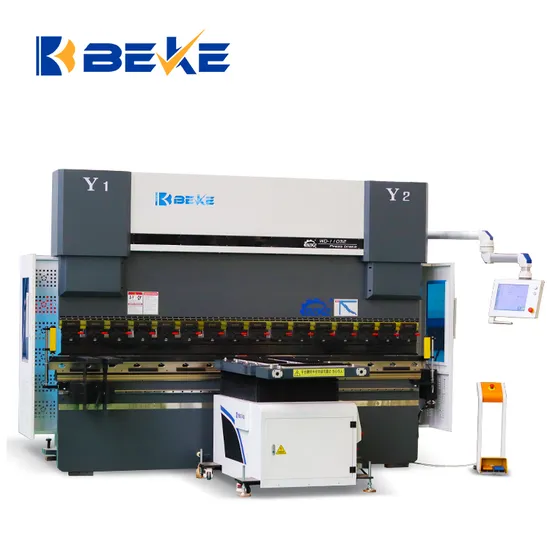

| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| CYBELEC CT15 CNC System Features: Large screen, high definition and contrast touch Screen system. Convenient interface, clear display and large icon buttons. Intuitive and friendly human-computer interface. Perfect programming can improve the efficiency of batch multi-step bending. The easybend page is very convenient for single step bending. Online help and pop-up prompts make the software interface very friendly. Using PC or notebook can upgrade and transfer data through wireless software. Support for multiple languages. | |
