Washing Detergent Powder Mixer (DSH)

Product Description

Mixer:
Working principles:

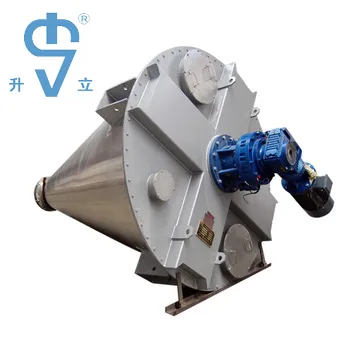

The screws of the Vertical Double Screws Mixer are rotating along the self-axes meanwhile revoluting along the central axes of conical container, so it is also called planetary conical mixer.
There are 4 working form in the cylinder
A. Rotation: Raise material along the helical blades
B. Revolution: Bring the material to run in circle in the container
C. Rotation combined with revolution can make material absorbed by screw and dispersed by centrifugal forces effect
D. Upgraded material fall down because of gravity, the materials move up and down, and inter-diffuse, convect with each other from full orientation space in the mixer
Application:
Powder-Powder, Powder-Grain, Powder-Liquid, Grain-Grain etc.

specification	working capacity(L)	working capacity(KG)	revolution/rotation	power	weight
DSH-0.3	0.18	200	3.5/120	3	500
DSH-0.5	0.3	300	3.5/120	3	600
DSH-1	0.6	650	3/78	4	1200
DSH-2	1.2	1200	3/78	5.5	1500
DSH-3	1.8	1800	3/78	7.5	2300
DSH-4	2.4	2500	1.8/65	11	2520
DSH-6	3.6	3600	1.6/65	15	3700
DSH-10	6	6000	1/65	18.5	3980
DSH-15	9	9000	1/65	22	4500
DSH-20	12	12000	1/44	37	5500
DSH-30	18	18000	1/44	45	6800

1.Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; different material can also be used in parts between the part contact with the raw material and the parts don't contact with the raw material.Surface treatment for stainless steel can be sandblasting, wiredrawing, polishing, mirror polishing.
2.Reliable driven unit
The driven unit and power is varied according to different raw material, starting method, and processing. Double screw conical mixer is equipped with appropriative double output reducer, which combines pinwheel, gear and warm and gear.
3.Excellent discharging unit
Spherical valve or plum-blossom dislocation valve is matched to the double screw conical mixer.The surface of the valve match the track of the bottom of screw, to reduce the mixing dead zone to the maximum,and to make the largest discharging area, so as to make sure no leftover. Spherical valve has excellent sealing effect to powder, liquid and even in the negative pressure state.Plum-blossom dislocation valve is easy to operate and control the discharging speed.
4.Powerful auxiliary components
Equipped with circulation medium of jacket, the double screw conical mixer can realize the temperature control in mixing process.In the mixer barrel, the part contact with material can coat some antiriot,anti-caking and metal isolation material according to different ingredient.
In some severe wear conditions, the screw surface can be overlaid by some wear proof alloy.If a small quantity of liquid is required during mixing, spraying or atomizing unit is necessary in order to mix the liquid evenly with the main ingredient.The liquid-adding system is basically composed by the three parts: pressure source, liquid storage pot and spraying nozzles.
Simple Production line
Configuration 1: conical mixer with manually feeding.
Configuration 2: conical mixer, manually feeding device with dust collector.
Configuration 3: conical mixer with vacuum feeder.
Configuration 4: conical mixer with crane.
Configuration 5: conical mixer with screw conveyor.
Configuration 6: conical mixer with bucket elevator.
Configuration 7: simple production line with conical mixer, vacuum feeder, storage tank and auto-packing machine.
Configuration 8: simple production line with conical mixer, manually feeding, screw conveyor to storage tank and auto-packing.
COMPANY PROFILE
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 26 years, we go deeply mixing processing filed and related technology, devote to research different kinds of mixer, modify and perfect existing mixing system, and develop new-type mixer equipment
Under working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team, Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems, providing more suitable mixer, promoting upgrades, and creating maximum value for customers.

---
