Factory Price Display Panel Full Color Video Wall, Perimeter Digital Screen, Public Advertising Sign Board Outdoor LED Billboards (P4, P5, P6, P8, P10, P16)

Product Description

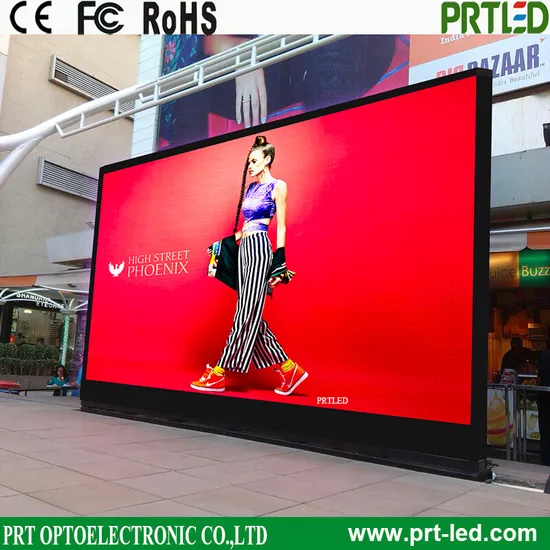

SMD1921 P4 outdoor full color led display screen,high resolution,perfect display vision for outdoor advertising with high quality and competitive price
Product features:
1. High quality: made with national star leds SMD1921, 4 layer board
2. Wide view angle: up to 160° horizontal and 140° vertical
3. High brightess: up to 6000nits,and can be seen under sunshine
4. High resolution: density of 62500dots/sq.m,high definition with exquisite pictures,good vision
5. Strong configuration:iron cabinet with back doors for good waterproof and good protection, cabinet size of 512×768mm or 1024 x 768mm
6. Combined easily:can be suspend on truss or fixed installation, Seamless spliced
7. Energy-saving:Low power consumption, good heat dissipation with fans
8. Wide usage: used for public advertising, events,live show,banquet,wedding,stage ackground,billboard etc.
More pictures for good understanding:
Following parameter are only for reference,cabinets size can be customized,and different requests will cause different cost,please contact us for details!

P4 SMD1921 Indoor full Color LED Screen Specification
Pixel pitch			4mm
Pixel Configuration			1R1G1B
LED component			SMD1921
Size of module			256mm x 128mm
Resolution of module			64x32dots
Size of cabinet			512mm x 512mm / 1024mm x1024mm x 150mm
Resolution of cabinet			128x128dots/128x192dots
Material of Cabinet			Iron or Aluminum
Weight of Cabinet			15KGS
Brightness			>6000cd/sq.m
Density			62500dots/sq.m
Best viewing angle			140° /140°
Pixel Configuration			1R1G1B
Best viewing distance			3-50M
Maximum power consumption			1000W/sq.m
Average power consumption			600W/sq.m
Driving method			1/8 scan
Control method			Synchronization
Gray scale			65536
Colors			256*256*256
Color temperature			3200-9300k
Uniformity			97%
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
Working humidity			10% ~ 90%
MTBF			10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>1920Hz
IP grade			IP65
Life Span			100,000 hours
Data transafer method			RJ45
Pratical standard			CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform			WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

We provide two years warranty normally,also can three years according to customer's request,and keep after-sale service and free maintenance for lifetime,only ask for material costs,and our products produced based on international standards and got certifications,so we can ensure the high quality and long life span

---
