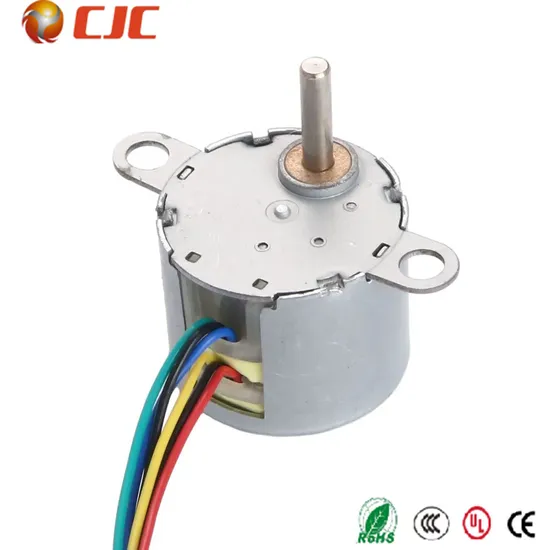

24V DC Mini Stepper Motor for Textile Machinery with CE Certification

Product Description

Product Description
Our products are widely used in air conditioning, monitoring, smart toilet, electronic locks, valves, packaging machinery, food machinery, printing machinery, semiconductor processing, medical machinery, textile machinery, office automation equipment, fitness equipment,Engraved, lettering, and other areas of automation and control.
Besides, they also mainly used for: home air conditioning, surveillance cameras, high-speed dome, variable speed ball, medium speed ball, air conditioning, smart toilet, office equipment, mobile air conditioning, stage lighting, medical equipment, textile machinery, equipment, sanitary ware and other automation and control areas.
We have the integrated capability of design, engineering and manufacturing motors. Another key advantage is our integrated supply chain that we can make all the motor components by ourself, which give the flexibility of fast development, cost down and quality control from the beginning of sourcing.
The following parameters for your reference, we could customize motor for your applications.
Parameters:

Modle	Number of Phase	DCV	Ω	Start frequency (PPS)	Operating frequency(PPS)	Pull-in torque (mN.m)	Self-positioning torque (mN.m)	step angle	reduction ratio	dB
24BYJ28	2	8V	50	≥600	≥1000	≥30	≥20	5.625°/16	1:16	<35
24BYJ28	2	12V	100	≥600	≥1000	≥60	≥39.2	5.625°/64	1:64	<35
24BYJ28	2	5V	20	≥600	≥1000	≥300	≥39.2	5.625°/89	1:89	<35
24BYJ48	4	12V	150	≥600	≥1000	≥30	≥20	5.625°/16	1:16	<35
24BYJ48	4	12V	60	≥600	≥1000	≥45	≥40	5.625°/25	1:25	<35
24BYJ48	4	12V	200	≥600	≥1000	≥29.4	≥29.4	5.625°/32	1:32	<35
24BYJ48	4	24V	300	≥600	≥1000	≥120	≥39.2	5.625°/89	1:89	<35
24BYJ48	4	5V	20	≥600	≥1000	≥110	≥39.2	5.625°/64	1:64	<35

Drawing:
Company Profile
Certifications
Exhibition
FAQ
Q: Can I visit your factory before we place the order?
A: Yes. You are welcome to visit our factory.
Q: Do you accept customization?
A: Of course. We have a strong design team. Any problems will get our technical answer.
Q: How soon can I get the price?
A: Usually we quote within 24 hours after getting your inquiry (Except weekend and holidays). If you are very urgent to get the price, please
contact us by email or other way so that we can quote.
Q: What's the delivery time of samples?
A: 1-3 weeks.
Q: What's the delivery time of mass production?
A: Normally one month. It depends on your order quantity or other special situation.
Q: What's your payment terms?
A: TT, Paypal, Western Union, and other payment ways is available. Please contact us which payment ways you need before placing the order. Payment terms: 30%-50% deposit, the balance before shipment.
Q: What's the shipping way?
A: We accept shipping way by Express (DHL, UPS, Fedex, etc), by Sea and other shipping way. Please contact us if you need other shipping
way before shipment.

---
