Sand - Vik CH440 Single Cylinder Cone Crusher Original Design CH430 Sand Vic

Product Description

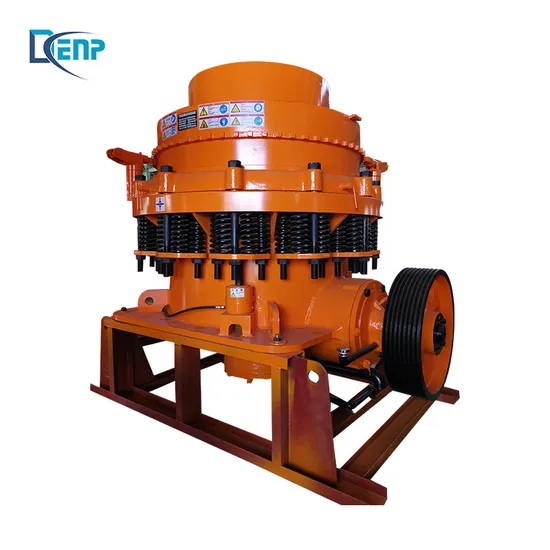

DPY/DPYS Hydraulic cone crusher Shanbao
Product Description
With the features of excellent performance,high benefit, strong reliability and highcostperformance,DYseries singlecylinder hydraulic cone crushers arewidely used for crushing materialssuch as iron ore, copper ore, limestone.granite etc in construction, metallurgy,highways,mines, water conservancyand other fields.
Structure Drawing

The main part consists of
1.Feeder cover
2.Upper frame
3.Cone Crushing Head4.Lower frame
5.Sealing part
6.Eccentric sleeve
7.Driving system
8.Hydraulic cylinder
9.Concave
10.Mantle


Technical Parameters

Model	Weight (t)	Power (kw)	Chamber Type	Max Feed Size (mm)	Standard Capacity for Discharge Openning CSS (t/h)
					6	8	10	13	16	19	22	25	32	38	44	51
DPY560	15.5	250	EC	217	-		-		115-202	123-279	132-297	140-316	160-360	177-399
			C	177	-	-	-	102	110-220	118-295	126-316	135-336	153-382	169-339	-	-
			MC	142		-	-	98-124	107-266	115-286	122-305	130-325	148-333	163-245		-
			M	112			-	119-190	128-283	138-303	148-324	157-345	179-286	198
			MF	87	-	-	117	127-232	137-251	147-269	157-288	167-306	190-254	-	-	-
			F	72	-	93-139	99-181	107-196	115-212	123-227	133-243	141-258	160-214	-	-	-
			EF	40	100	125
DPY675	29	315	EC	280	-	-	-	-	180	193-344	207-444	220-472	250-557	277-616	303-674	334-520
			CX	250	-			-	178-198	191-382	204498	216-530	247-604	273-667	299-532	330-361
			C	220	-	-	-	-	175-194	188-376	201-491	214-522	244-596	269-658	295-524	324-361
			MC	180	-				167-260	179-438	191-468	204-498	232-568	256-513	281-374
			M	140	-	-	-	-	204-306	219-456	234-487	249-519	284-521	313-418	-	-
			MF	120	-			200	216-385	232-413	247-441	263-470	299-471	332-379
			F	90	-	-	-	206-322	222-347	238-373	255-398	271-424	309-425	342	-	-
			EF	70	-	-	-	227-316	244-340	263-321	281-312	-	-	-	-	-

Note: 1.Capacity changer irxJerdifferert work condition.

2.Shower capacity bases on sipptying cortinuousfy with proportion of 1.6 t/m3.

3.Capacity varies with characters of rock.

Model	Weight (t)	Power (kw)	Chamber Type	Max feed size (mm)	Standard Capacity for Discharge Openning CSS (t/h)
					25	29	32	35	38	41	44	48	51	54	60	64	70	76	83
DPYS560	20	250	EC	450	-	-		267	282-353	298-446	313-563	334-601	349-524	365-456	-	-	-	-	-
			C	400		225	239-299	254-381	269-484	284-511	298-448	318-398	333	-	-		-	-
			MC	300	195	214-267	228-342	242-435	256-461	270-486	284-426	303-378	317					-
DPYS675	30	315	EC	560	-	-	-	-	-	349	368-460	392-588	410-718	428-856	465-929	489-978	525-1050	562-983	604
			C	500	-	-	-	-	318	336-420	353-618	376-753	394-788	411-823	446-892	469-822	504-631	-	-

What We Have
Who We Are
Who We Are:
DENP Industrial is a global manufacturer and supplier of crusher wear parts, crusher spare parts and original Shanbao brand stone crushers. DENP Foundry takes up 15000 square meter's factory, and produce capacity of around 10,000 tons annually,84 workers and 7 engineers. The biggest single casting we can make is 6 tons and diameter no more than 3 meters. DENP's products have a 20% to 30% longer service life than other traditional manganese and Chrome products in China. We has established import and export business since 2010 and have many years of history in the casting steel industry, basis on a foothold in the domestic market to a large number of exports to the overseas market.

DENP foundry founded in 1997, corrosion resistance, wear resistance, impact-resistant product development, and production. Moreover, a total of annual production is about 9,000 tons for various products. Besides. Our products include the standard parts: bowl liner, concave and mantle, jaw plate, shredder hammer, blow bar, impact plate, break plates, VSI parts, PLFC parts, Mill liner for top brands and non-standard crusher parts.

"Better Quality, Better Service!" is our business principle. Through tens years cooperation with our customers from domestic and abroad. We get good reputation from our customers through our quality castings, and get progress with our customers together in the area of USA, Canada, UK, Australia, Russia, Finland, Poland, Ukraine, Italy, Saudi Arabia, UAE, Oman, Africa, Indonesia, Sri Lanka, India, Malaysia, Mexico, Colombia, Honduras, Peru, Chile, and so on.

You warmly welcome to visit our foundry at your convenience!

---
