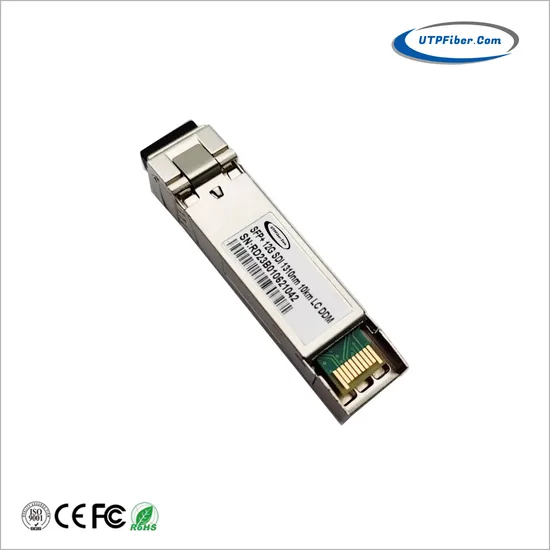

12g-SDI Video SFP+ CWDM 1410nm~1570nm 10km Optical Transceiver

Product Description

Product Description 12G-SDI CWDM SFP+ 10KM Video Pathological Patterns Optical Transceiver for SD/HD/3G/6G/12G-SDI, SMF 1270nm~1610nm
Overview
The 12G CWDM SFP+ optical transceiver module is specially designed for broadcast video transmission applications over single-mode fiber (SMF). It supports data rates from 270Mbps to 11.88Gbps per 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI standards. This 12G-SDI transceiver is ideal for 10km pathological signal pattern transmission. Using CWDM technology, this 12G SFP+ allows users to multiplex up to 18 wavelengths on a single fiber. By doing so, the network operator can maximize the transmission capacity without deploying new fiber.
Features Available in a hot-pluggable SFP+ package Full-duplex transceiver integrated module CWDM DFB laser and PIN receiver Complies with SMPTE ST-297/2081/2082 standards Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI video pathological modes The transmission distance can be up to 10km through single-mode optical fiber The maximum power consumption is less than 1.5W Metal housing for reduced EMI Dual LC optical interfaces Optional MSA or Non-MSA pins Commercial grade operating temperature range from 0 to 70 degrees Celsius The supply voltage is 3.3V RoHS compliant (lead-free) Detailed Photos
Application
Product Parameters Specifications

Product Series	12G-SDI SFP+	Manufacturer	UTP Fiber
Manufacturer Part#	UF-CSFP-12GXX-10	Form Factor	SFP+
Data Rate	12 Gbps	Wavelength	1270nm,1290nm,1310nm,1330nm,1350nm, 1370nm,1390nm,1410nm,1430nm,1450nm, 1470nm,1490nm,1510nm,1530nm,1550nm, 1570nm,1590nm,1610nm
Media Type	SMF	Max Distance	10 km
Transmitter Type	DFB	Receiver Type	PIN
Transmitter Power	-3.0 ~ +2.0 dBm	Receiver Sensitivity	< -11.0 dBm
Extinction Ratio	> 3.5 dB	Receiver Overload	> 0.5 dBm
Connector	LC Duplex	Max Power Consumption	1.0 W
DDM/DOM	Yes	Compliance	RoHS, CE, REACH SFP+ MSA, SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M
Environment	Operating Temperature: 0~70 °C Storage Temperature: -40~85 °C Operating Humidity: 5%~85% Storage Humidity: 5%~95%	Application	SMPTE ST-297-2015, ST2081 & ST-2082 UHDTV/HDTV/SDTV Service Interfaces High-density Video Routers
Shipping Weight	0.03 kg	Dimensions (L x W x H)	56.5 x 13.9 x 8.5 mm

Ordering Information

Model	Description
UF-CSFP-12G27-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 10km, LC, DDMI, MSA
UF-CSFP-12G29-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 10km, LC, DDMI, MSA
UF-CSFP-12G31-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 10km, LC, DDMI, MSA
UF-CSFP-12G33-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 10km, LC, DDMI, MSA
UF-CSFP-12G35-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 10km, LC, DDMI, MSA
UF-CSFP-12G37-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 10km, LC, DDMI, MSA
UF-CSFP-12G39-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 10km, LC, DDMI, MSA
UF-CSFP-12G41-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 10km, LC, DDMI, MSA
UF-CSFP-12G43-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 10km, LC, DDMI, MSA
UF-CSFP-12G45-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 10km, LC, DDMI, MSA
UF-CSFP-12G47-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 10km, LC, DDMI, MSA
UF-CSFP-12G49-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 10km, LC, DDMI, MSA
UF-CSFP-12G51-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 10km, LC, DDMI, MSA
UF-CSFP-12G53-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 10km, LC, DDMI, MSA
UF-CSFP-12G55-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 10km, LC, DDMI, MSA
UF-CSFP-12G57-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 10km, LC, DDMI, MSA
UF-CSFP-12G59-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 10km, LC, DDMI, MSA
UF-CSFP-12G61-10	12Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 10km, LC, DDMI, MSA
