Product Details
Product Description
Product Description

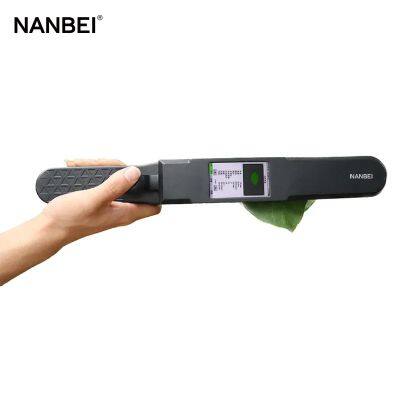

YMJ-B plus living plant leaves touch screen portable leaf area meter
YMJ-B plus leaf area measuring instrument can accurately, quickly, and undamaged measure the leaf area
and related parameters of leaves, and can also measure the area of picked plant leaves and other sheet-like objects.
The instrument has strong battery life and supports Bluetooth data transmission, making it very suitable for field work.
It can scan leaves up to 3000mm in length.
The leaf area measuring instrument is suitable for agricultural research in related fields such as agriculture, grass
industry, forestry, and seed industry. Based on the physiological indicators measured by leaf area, it can control the
reasonable density of leaf area in yield increase measures and improve crop yield.
Specification
Product name
| YMJ-B plus living plant leaves touch screen portable leaf area meter
|
Test parameter
| leaf length,width,thickness,ratio of length and width,area
|
Screen
| touch screen
|
Communication
| Type-C
|
Power supply
| rechargeable lithium battery
|
Maximum scanning length
| 3000mm;
Resolution : 0.1mm
|
Maximum measurement width
| 210mm;
Resolution: 0.1mm
|
Maximum measured thickness
| 6.5mm
|
Maximum scanning area
| 3000 * 210mm2
|
Area measurement accuracy
| ± 2%
|
Scanning speed
| 150mm/s
|
Display
| 480 * 854 resolution RGB touch color screen
|
Power supply
| 5Ah rechargeable battery
|
Battery work time
| 16h
|
Product size
| 420 * 50 * 54mm
|
Product weight
| 0.53kg
|
Work environment
| Working temperature: -20~60 ℃
|
Working humidity: 0%~100% (without frost formation)
|
