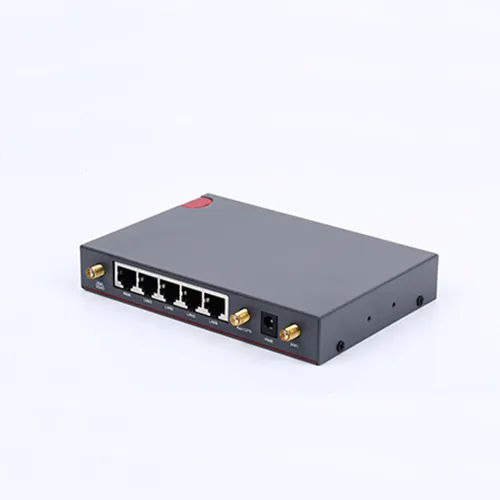

H50series 3G SIM Card Router with WiFi, Pptp, L2tp, Ipsec, Gre for ATM, Vending Machines, POS

Product Description

Product Description H50series 3G SIM Card Router with WiFi, Pptp, L2tp, Ipsec, Gre for ATM, Vending Machines, POS
1. Industrial grade including moduel and mother board
2. Quad band communication
3. High CPU processing, Better performance
4. UMTS/WCDMA/HSPA Wireless
3G Router is based on WiFi (802.11A/b/g) and public WCDMA/HSDPA/HSUPA network, implements seamless connection between wireless local area network (WLAN) and wireless wide area network (WWAN), and provides customers with mobile broadband service.
It adopts high-powered mips2 CPU and embedded real time operating system, and is embedded with WiFi AP module and WCDMA/HSDPA/HSUPA module. It provides a secure, high speed, reliable wireless internet connection for customers, and it has been widely used on SOHO and industrial fields.
Product Parameters Wireless wide area network specification
1. Umts/wcdma/hsdpa/hsupa 850/900/1900/2100mhz
2. Quad-band egsm 850/900/1800/1900mhz
3. Gprs/edge class 12
4. Hsupa: 5.76mbps(ul) / hsdpa: 7.2mbps(dl)/umts: 384kbps(dl/ul)
5. Edge: 236.8kbps(dl/ul)
6. Gprs: 85.6mbps(dl), 42.8kbps(ul)
Wireless local area network specification
1. Ieee 802.11a/b/g
2. Max speed: 54mbps
Hardware system
1. Industrial mips2 cpu, 200m
2. Flash: 4mb (extendable to 16mb)
3. Sdram: 16mb (extendable to 64mb)
4. E2prom: 64kb
5. Interface
10/100m ethernet port
Rs232 serial port (support rs422/rs485 if needed), rates: 110~230400bits/s
Indicator lights: Power, online, alarm, system, link/act"
Antenna interface: Standard sma female interface, 50 ohm
Sim/uim interface: Standard user card interface
Power interface: Standard 3-pin power jack
Reset button: Restore the router to its original factory default settings
6. Power supply
Standard power supply: Dc 12v/1.5a
Power range: Dc 5~26v
7. Wireless module
High-powered industrial wcdma/hsdpa/hsupa module
8. Size
Outline dimension: 150x108.5x24.6mm
9. Weight: 500 g
10. Others
Operation temperature: -30~+75
Storage temperature: -40~+85
Humidity: 95% (unfreezing)
Software function
1. Support vpn tunnel, including pptp and l2tp+ipsec
2. Support auto online keeping mechanism, including online detect, auto redial when offline to make router always online
3. Support firewall and packet filter
4. Support multi protocols, such as tcp/ip, udp, icmp, smtp, http, pop3, oicq, telnet, ftp, snmp, etc.
5. Support dynamic and static router
6. Support dhcp server
7. Support nat, such as snat, dnat etc.
8. Support dynamic dns (ddns)
9. Support dmz host
10. Support route transmission, data communication by serial port. Support data service center management
11. Support vpdn network
12. Support web configure (local and remote)
13. Support telnet management and console
14. Support switch interface, make multi terminals sharing router's wan connection
15. Support multi wan dial method, including auto allocated ip, specifying local ip, specifying local and remote ip
16. Can be used as ppp server. Support multi authentication method, such as pap, chap, chap-ms, chap-msv2
17. Support multi debug method, such as web, console debug and syslog etc.
18. Support console upgrade firmware
19. Support tftp upgrade firmware
20. Support multi os, such as windows, linux, sco unix etc.

Cellular
4G(FDD LTE/TDD LTE)	AU: B1/B3/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41
3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)	850/900/1900/2100 MHz 850/1900/2100 MHz 900/2100 MHz
2G(EDGE/GPRS/CDMA/EVDO)	850/900/1800/1900 MHz
Antenna Interface
Number of ports	1 or 2 (MAIN + AUX/WiFi/GPS)
SIM	1 or 2(3 V & 1.8 V)
Ethernet Interface
Number of ports	5 x 10/100 Mbps, 5 LAN or 4 LAN + 1 WAN
Magnet isolation protection	1.5 KV
Serial Interface
Number of ports	1 x RS-232 or 1 x RS-485
Baud rate	300bps to 230400bps
Software
VPN tunnel	PPTP/L2TP, IPsec, GRE, OpenVPN
Firewall	DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name)
Management	Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional
Serial port	Transparent, TCP Client/Server, UDP, Modbus RTU
Others
Reset button	1 x RST
LED indicators	2 x NET, 4 x LAN, 1 x WAN, 1 x WLAN
Power	5 to 32 V DC(standard 12V/1.5A)
Power consumption	Idle: 160 mA@12 V Data link: 220 mA (peak) @12 V
Housing & Weight	Metal(IP34), 500 g
Dimension	150 x 102 x 25.5 mm
Installation	Desktop, wall mounting and DIN rail mounting
Certification	CE, RoHs, FCC
