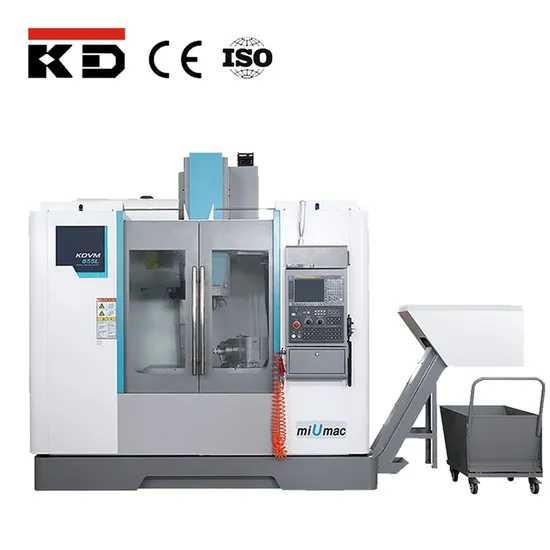

High Precision Vertical Machining Center Kdvm855L CNC Milling Machine

US$28,336.00-37,565.00 1 Set (MOQ)

Basic Info.

Model NO.
KDVM855L
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
800mm
Y Travel
530mm
Z Travel
530mm
Table Size
930 X 510mm
Spindle
Bt40
Spindle Speed
8000rpm
Main Motor
7.5/11kw
Atc
24 Tools Capacity
Travel Speed
24m/Min
Motor Torque
11/11/11nm
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523

Product Description


PRODUCT SPECIFICATIONS
MODELS
KDVM855L
TRAVEL

X axis
800mm
Y axis
510mm
Z axis
510mm
Spindle center to column
595mm
Spindle end to table
120-670mm
TABLE

Tablesize
1000×550mm
T-slot(width×number×space)
18mm×5×90mm
Max.table loading
600kg
SPINDLE

Taper bore of spindle
BT40
Spindle power
11/15kw
Spindle speed
8000rpm
FEED

X/Y/Z fast feed
48/ 48/ 36m/min
Torque axis motors
11/ 11/ 20Nm
ATC

Tool number
24
Max. tool size (With adjacent tool)
Ф78mm
Max. tool size (Without adjacent tool)
Ф120mm
Max.tool weight
8kg
Time (tool-tool)
1.8s
ACCURACY

Positioning
≤0.010
Repeatability(X/Y/Z)(ISO)
≤0.004mm
OTHERS

Min.Input
0.001mm
Overall dimension (LxWxH)
2800x2400x2700mm
Net weight
5250kg
