Product Details
Product Description
Product Description

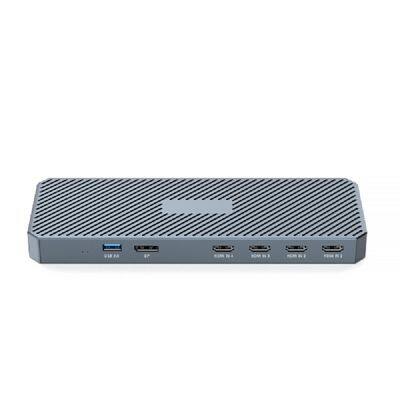

TV003 is a Thunderbolt docking station with professional-grade video processing functions, original flavor, born for live broadcast, easy to capture and record, equipped with high-performance audio and video encoding chips, escorting live broadcast.
1 DP interface, 8K high-definition expansion, can output multiple modes to play with high-definition large screen, copy mode, display the same picture, the large screen is more exciting; expansion mode, display different pictures, work/entertainment are not wrong. 1 DC power supply can support up to 100W PD charging, fast battery life, so you can work at any time without power outage. 2 Type-c Thunderbolt interfaces: Any interface can be used as a data input terminal, theoretically supports up to 40Gb/s data transmission speed, and is backward compatible; 1 USB3.1 interface supports a maximum transmission rate of 10Gb/s in theory, easily expand more devices, USB flash drive keyboard and mouse connection, one-step.
4-way HDMI acquisition, four-way live screen, video as you like, record every wonderful moment of your live broadcast. Multiple device connection methods, can collect at the same time, switch the camera position at will, show 1080P@60Hz high-definition live broadcast, the motion picture will not have tailing phenomenon, making the animation picture clearer.
Using aluminum alloy material, it is sturdy and durable, has good heat dissipation and does not get hot, ensuring working stability.
Specifications:
·Thunderbolt interface*240Gb/s transmission bandwidth, supports daisy chain
·Acquisition resolution: any resolution within 1080P
·Audio input: 4-channel LPCM audio signal
·Input interface: HDMI OUT input*4 (support 1080P@60Hz)
·Output interface: USB3.0*1
·Output interface: DP*1 (support 8K video display)
·Thunderbolt interface: Thunderbolt 3*2 (maximum acquisition 1080@60Hz)
·Power interface: DC20V/7.5A (150w)
>>
