32m 4 Sections Shaft Lift Self-Climbin Tower Jack up Hydraulic Concrete Placing Boom

Product Description

29M 32M 33M Floor Self-Climbing Hydraulic Concrete Placing boom with CE&ISO&CCC

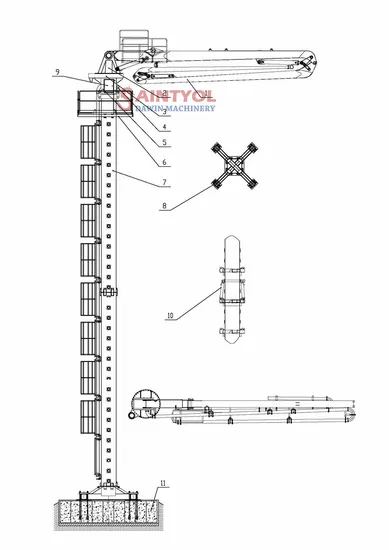

Tower Column hydraulic jack-up concrete placing boom, Self-climbing type, climbing by floor frame or by shaft frame. Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc.
Charactics
Modular design, mechanical and electrical integration control, folding boom, tube column, floor frame and shaft frame. Integration of advanced features and product diversification, to achieve a higher product portfolio, improve the applicability of the product.
Imported hydraulic and electrical components, adopt quality fast coupling for hydraulic pipelines, which is converted quickly, it can effectively solve the problem of oil leakage in the process of assembling and dismantling, and avoid the pollution of the environment. Safety and reliability
sections R type hydraulic boom, large circular arc, novel and beautiful appearance, compact structure, and the lightweight design of the boom, which reduced the weight of the whole machine..
Easy to transport and install.
Equipped with self-climbing frames which are driven by hydraulic and which climb up automatically from the present floor to the desired floor along the holes initially prepared in elevator well, the placing booms rise with the rising floor, saving time and labor.
Features
A.Boom
The arced boom structure is optimized by applying CPU design. The boom adopted high-strength steel plate for production with scientific process. It features beautiful appearance, superior rigidity and intensity, ensuring excellent and reliable quality.
B. Hydraulic system
C series products adopted Germany Rexroth solenoid directional control valve and balance valve
with secondary overflow. It has effectively avoided the potential damages of boom
which might be caused by over speed movement when the boom drops down, and sudden
increase of oil cylinder's pressure under external forces, thus the reliability of the boom
has been increased.
C.Inner Hydraulic Oil Tank
Inner hydraulic oil tank renders a compact structure and free swivel. It gives big
convenient for installation, dismounting and maintenance, which ensure longer service
life and excellent performance.
D.Climbing Facility
As a rectangular frame structure, the climbing facility is flexible, reliable and convenient
for dismounting.
E.Slewing Mechanism and Reducer
Slewing reducer adopted products made by the world famous brand of Italy Comer, with
a great torsion. Being accompanied with the integrated slewing balance valve made by
Germany Hawei, it achieves smooth operation and reliable and stable performance.
F.Wireless Remote Controller
C series products adopt industry-exclusive analogue wireless remote controller made by Taiwan TELECRANE, which is easy and convenient to operate, highly resistant to
disturbance and reliable in performance.Each series are accompanied with wired remote controller for use in necessity.
G.Electric Control System
The electric control system adopted world famous brand of electric components, such
as Japanese Omron and French Schneider. The multi automatic protection is set up in
the control program, so as to avoid misoperation and ensure the system's reliability.
H.Column
The column is made of high-strength steel plate in square shape, with nice appearance,
rigidness and intensity, as well as high reliability.

Option:
u Inner-climbing frames: Floor frames or Wall frames(Shaft frames)
u Column: 2m-10m.
u Mode of slewing: Gear slewing or rack & Bearing of stepless slewing.
u Voltage: 380V/50Hz or 440V/60Hz
u Radio remote Control: Tele Crane HBC or AUTEC
29m Tower Jack-up Concrete Placing boom Specifications:

Model			Units	HGY29C
Performance	Max.radius of placing boom		m	28.9
	Freestanding height (to the joint between the end of the boom and swivel table)		m	22.7
	Boom articulation		°	400
	Slewing brake		/	always close
	Working temperature		ºC	0ºC~60ºC
	Total weight		kg	19100
	Counter weight		kg	Have no
	Power		/	380V/50HZ
Motor	Model		/	Y2-160M-4
	Power		kW	11
Hydraulic system	Pressure		MPa	30
	Flux		l/min	18
Hydraulic oil	Circumstance temperature 35ºC-50ºC		/	L-HM 68
	Circumstance temperature 5ºC-35ºC		/	L-HM 46
	Circumstance temperature -15ºC-5ºC		/	L-HM 32
Control mode			/	Short-haul Control /radio remote control
Pipeline cleaning			/	Wet cleaning/Dry cleaning
Structure of tower body			/	Tubular column
Section of tower body			m×m	0.75×0.75
Boom	Shape		/	Three hydraulic foldable arms
	Inner diameter of pipeline		mm	DN125
	End hose		″×mm	5″×3000
	1st section	Length	m	11.5
		Articulation	°	0°~82.5°
	2nd section	Length	m	9.3
		Articulation	°	0°~180°
	3rd section	Length	m	8.1
		Articulation	°	0°~180°
Climbing	Climbing mode		/	By hydraulic cylinder climbing
	Interval of climbing		m	0.52
	Floor frame		/	Hole prepared in floor
	Shaft frame		m	Hole prepared in floor 2.0~2.7
	Min.Interval of climbing frame	Climbing	m	3.0
		Placing concrete	m	6.0
		Rest	m	6.0

29m Placing BoomWorking Range :
33m Tower Jack-up Concrete Placing boom Specifications:

Model			Units	HGY33E
Performance	Max.radius of placing boom		m	33
	Freestanding height (to the joint between the end of the boom and swivel table)		m	22.7
	Boom articulation		°	400
	Slewing brake		/	always close
	Working temperature		ºC	0ºC~60ºC
	Total weight		kg	21200
	Counter weight		kg	Have no
	Power		/	380V/50HZ
Motor	Model		/	Y2-160L-4
	Power		kW	15
Hydraulic system	Pressure		MPa	30
	Flux		l/min	18
Hydraulic oil	Circumstance temperature 35ºC-50ºC		/	L-HM 68
	Circumstance temperature 5ºC-35ºC		/	L-HM 46
	Circumstance temperature -15ºC-5ºC		/	L-HM 32
Control mode			/	Short-haul Control /radio remote control
Pipeline cleaning			/	Wet cleaning/Dry cleaning
Structure of tower body			/	Tubular column
Section of tower body			m×m	0.75×0.75
Boom	Shape		/	Three hydraulic foldable arms
	Inner diameter of pipeline		mm	DN125
	End hose		″×mm	5″×3000
	1st section	Length	m	12.38
		Articulation	°	0°~82.5°
	2nd section	Length	m	10.93
		Articulation	°	0°~180°
	3rd section	Length	m	9.69
		Articulation	°	0°~180°
Climbing	Climbing mode		/	By hydraulic cylinder climbing
	Interval of climbing		m	0.52
	Floor frame		/	Hole prepared in floor
	Shaft frame		m	Hole prepared in floor 2.0~2.7
	Min.Interval of climbing frame	Climbing	m	3.0
		Placing concrete	m	6.0
		Rest	m	6.0

33m Placing BoomWorking Range :
Tower Column Concrete Placing Boom Installation:
Tower Placing Boom Job site Performance:

---
