Earth Moving Machine 15 Ton Crawler Excavator

Product Description

Product Description

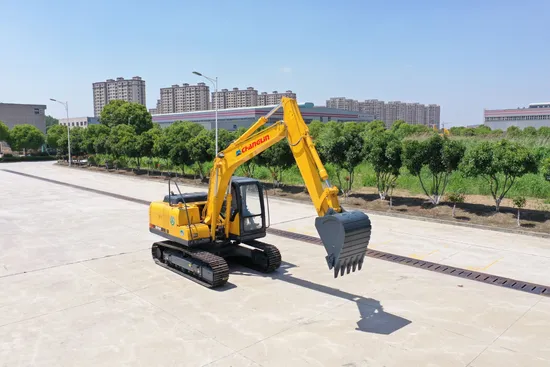

ZG150 15 ton excavator
CHANGLIN ZG150 Equipped with top brand engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.Based on the above advanced technology, CHANGLIN ZG150 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•Equipped with Top brand engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs •Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency. •High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads. •Intelligent electronic monitoring system, real-time monitoring, self-diagnosing fault alarm, maintenance information prompt.

ITEM		UNIT	Technical specifications
			GE150H
Operating weight		Kg	13890
Power		KW/rpm	86/2200
Rated bucket capacity		m3	0.6
Length	A	mm	7762
Width(500mm track)	B	mm	2510
Height	C	mm	2983
Turntable width	D	mm	2510
Height of cabin	E	mm	2825
Ground clearance of counterweight	F	mm	915
Engine cover height	G	mm	2243
Min. ground clearance	H	mm	416
Tail length	I	mm	2306
Turning radius of turntable	I'	mm	2387
Wheel base of track shoe	J	mm	3010
Length of chassis	K	mm	3751
Width of chassis	L	mm	2490
Track shoe gauge	M	mm	1990
Standard track width	N	mm	500
Max. traction		KN	122
Traveling speed (H/L)		Km/hr	5.9/3.4
Swing speed		rpm	13
Gradeability		Degree(%)	35(70%)
Ground pressure		Kgf/cm2	0.423
