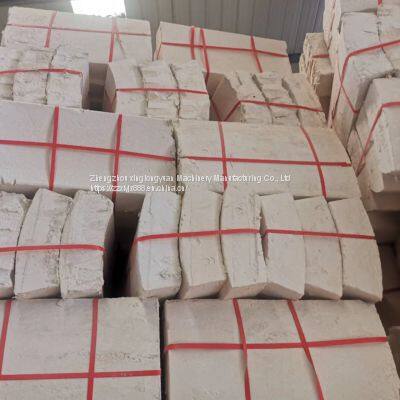

High temperature calcium silicate insulation board
High temperature calcium silicate insulation board is composed of hard calcium silicate hydrate and reinforced fiber, does not contain asbestos, and the maximum heat-resistant temperature reaches 1050 °C, which is a high-efficiency and energy-saving product. It has excellent characteristics such as high heat resistance, strong thermal insulation performance, low bulk density, high specific strength, good durability, corrosion resistance, can cut, and can be sawed and convenient construction, and can be widely used in energy-saving and thermal insulation projects of industrial kilns.
Physical, mineral, production, technical and thermal properties:
This product is made of quartz and lime through dynamic hydrothermal synthesis of primary crystal phase calcium silicate, this cactus globular microporous structure determines the irreplaceable excellent performance of the product in thermal insulation technology
Low thermal conductivity and good thermal insulation
Good thermal stability, small shrinkage in temperature changes
Low density, small bulk density, less heat storage
High strength, its specific strength is the highest among hard insulation materials.
Good durability, long-term use without similar pulverization of ceramic fiber felt
Does not contain carcinogens - asbestos, sulfur, chlorine and other toxic substances and other organic binders with low melting point.
Application/Application Area:
Since the insulation material in the furnace is used as the backing material, it does not directly leak and refractory surface, so some aspects of its requirements are different from the material of the spill surface
High refractory temperature, good thermal shock stability, high mechanical strength, which is the requirement for the refractory layer, is not the most important for thermal insulation materials, and the requirements for thermal insulation materials are
Low thermal conductivity
Low bulk density
Resistant to corrosion of gases and condensates
Good processing performance. Easy to install
Calcium silicate board can meet the above requirements, replace other thermal insulation bricks, and occupy a dominant position in industrial kiln insulation.
Specific application in the following parts
Cement industry: rotary kiln, decomposition kiln, preheater, air duct, kiln hood, cooler.
Nonferrous metallurgy industry: electrolyzers
Metallurgical industry: heating furnace, soaking furnace, annealing furnace, high temperature flue, hot air pipeline
Petrochemical industry: heating furnace, ethylene cracking furnace, hydrogenation furnace, aromatic furnace, catalytic cracking furnace
Power industry: preheating furnace pipes
Glass industry: furnace bottoms and walls of melting furnaces
Ceramic industry: tunnel kilns, and the core and plate of tunnel kiln cars
>>
